Octomap Depth Mapping for ROS2

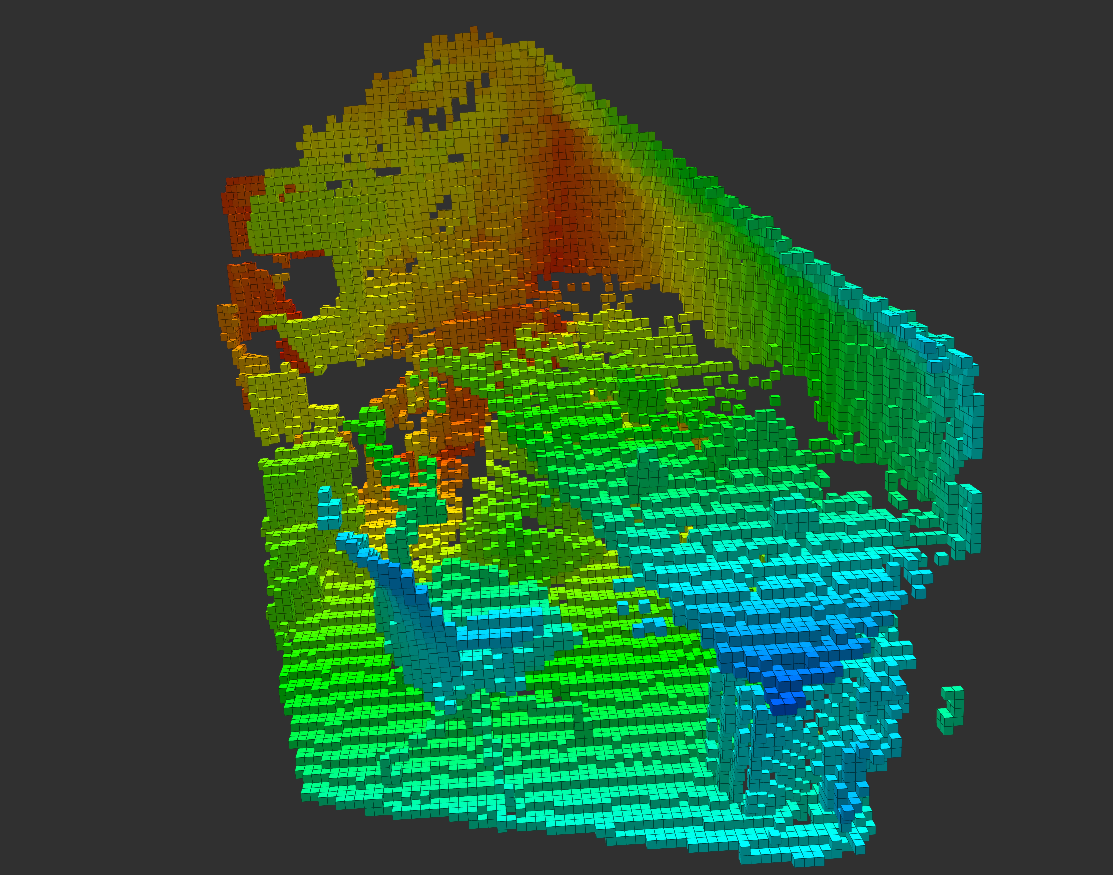

octomap_depth_mapping is a ROS2 package to create octomaps from depth images

Dependencies

• ROS2 Foxy or above
• Octomap
• OpenCV
• cv_bridge
• message_filters
• CUDA Toolkit (optional, for details)

Usage

You can clone this repository into your <your-ros2-workspace>/src folder and build the workspace

git clone https://github.com/berkealgul/ros2-octomap-depth-mapping.git

Before building this package, decide cuda usage and change your distance function if necessary

To launch the package (dont forget to source the package)

ros2 launch octomap_depth_mapping mapping_launch.py

Node: octodm_node

Main mapping and publishing node

Published Topics

|Name|Type|Description| |:—:|:—:|—| |octomap_fullmap| octomap_msgs/Octomap | generated octomap (orginated at 0,0,0) |

Subscribed Topics

|Name|Type|Description| |:—:|:—:|—| |depth/rect | sensor_msgs/Image | rectified depth image see here for details | | pose | geometry_msgs/PoseStamped | pose of the camera relative to world origin |

Parameters

|Name|Default|Type|Description| |:—:|:—:|:—:|—| |sensor_model/fx | 524.0 | double | Camera fx calibration value | |sensor_model/fy | 524.0 | double | Camera fy calibration value | |sensor_model/cx | 316.8 | double | Camera cx calibration value | |sensor_model/cy | 238.5 | double | Camera cy calibration value | |sensor_model/hit | 0.7 | double | Hit probability of octomap | |sensor_model/miss| 0.4 | double | Miss probability of octomap | |sensor_model/min | 0.12 | double | Minimum probability of empty cell | |sensor_model/max | 0.97 | double | Maximum probability of occupied cell | |encoding | mono16 | string | Input image encoding | |resolution | 0.05 | double | Octomap resolution | |padding | 1 | int | Padding size between pixel during image projection | |width | 640 | int | Input image width | |height | 480 | int | Input image height | |frame_id | map | string | Octomap ROS frame id | |filename | | string | file path for saving & loading octomap (optional) | |save_on_shutdown | false | bool | If true octomap is saved to filename before shutting down |

Remappings

|Name|Default|Description| |:—:|:—:|—| |image_in | depth/rect | Subscribed image topic | |pose_in | pose | Subscribed camera pose topic | |map_out | octomap_fullmap | Published octomap topic |

Services

|Name|Type|Description| |:—:|:—:|—| |reset | std_srvs/srv/Empty | Deletes octomap nodes | |save | std_srvs/srv/Empty | Saves octomap into filename location| |get_octomap | octomap_msgs/srv/GetOctomap | Returns current state of octomap |

About Image Data

This package supports 8 and 16 bit greyscale images

CV_U8C1 and CV_16UC1 in OpenCV literature

mono8 and mono16 in cv_bridge literature

In addition, images are assumed to be rectified beforehand; thus no distortion parameters are needed for this package

Cuda

By default cuda is not supported. In order to compile with cuda, uncomment line at CMakeLists.txt

# uncomment this line to use cuda
#set(USE_CUDA TRUE)

This package developed with cuda toolkit 11.4 and supports with gpu compute capabilities 3.5 and above

To learn more about cuda device compatibility look at this link

Distance Function

Every raw depth value in input image needs to be converted into meters before processing further. In this package, this is done at depth_to_meters function at depth_conversions.hpp file. For our case it is writen according to Kinect v2 depth camera, thus you may need to change this function(or cuda function) according the sensor model you have.

inline double depth_to_meters(ushort raw_depth)
{
    if(raw_depth > 6408)
    {
        return ((2.5-0.9)/(15800.0-6408.0))*raw_depth;
    }

    return 0;
}

For cuda users

__device__ __forceinline__ void depth_to_meters(ushort raw_depth, double& depth)
{
    if(raw_depth > 6408)
    {
        depth = ((2.5-0.9)/(15800.0-6408.0))*raw_depth;
    }
    else
        depth = 0;
}
