rmoss_auto_aim package from rmoss_contrib repo

rmoss_auto_aim

Package Summary

Tags No category tags.
Version 1.0.0
License Apache License 2.0
Build type AMENT_CMAKE
Use RECOMMENDED

Repository Summary

Checkout URI https://github.com/robomaster-oss/rmoss_contrib.git
VCS Type git
VCS Version humble
Last Updated 2022-09-12
Dev Status UNMAINTAINED
CI status No Continuous Integration
Released UNRELEASED
Tags No category tags.
Contributing Help Wanted (0)
Good First Issues (0)
Pull Requests to Review (0)

Package Description

A Simple Implemetation for RoboMaster Vision-based Task Auto-Aim-Task .

Additional Links

No additional links.

Maintainers

  • zhenpeng ge

Authors

No additional authors.

rmoss_auto_aim模块

1.简介

rmoss_auto_aim模块是RoboMaster自瞄功能的一个简单实现,为步兵机器人或在其他射击机器人提供自瞄支持,通过摄像头识别敌方装甲板位置,计算出云台所需要转动的角度。

主要文件

  • armor_detector.hpp/cpp : 装甲板识别模块 。
  • simple_auto_aim_algo.hpp/cpp : 一个简单自瞄算法的实现, 包括装甲板识别,位置解算,预测等等。
  • simple_auto_aim_node.hpp/cpp : ROS顶层模块SimpleAutoAimNode, 主要由SimpleAutoAimAlgo,rmoss_cam::CamClient等模块构造。
  • simple_auto_aim_main.cpp : SimpleAutoAimNode的main入口。

2.快速使用

自瞄测试(图片模拟相机)

launch启动

ros2 launch rmoss_auto_aim simple_auto_aim.launch.py

查看相机图形

ros2 run rqt_image_view rqt_image_view

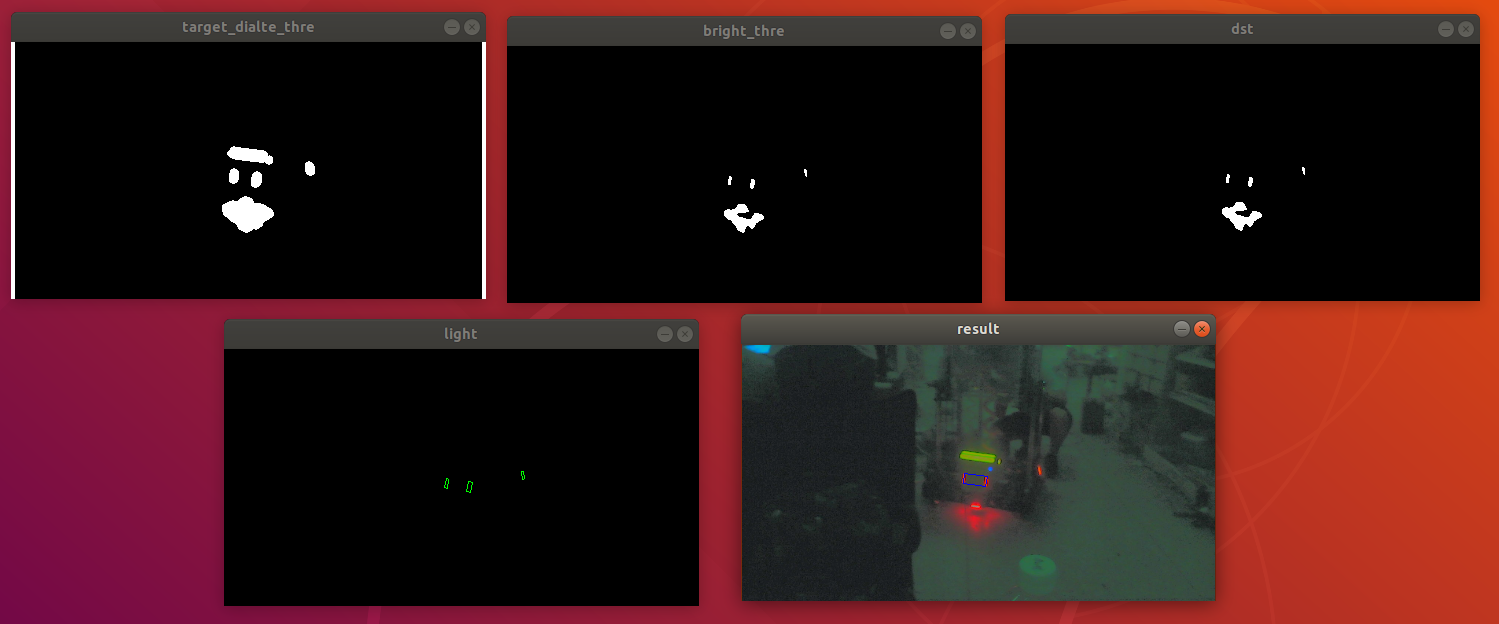

debug信息(图像处理中间过程信息/TODO)

若想取消图像debug信息,可以修改配置文件config/simple_auto_aim_params.yaml

debug : False

3.自瞄算法说明
