Package Description

Ignition Simulator for RoboMaster University Championship 2021

Additional Links

No additional links.

Maintainers

  • Zhenpeng Ge

Authors

No additional authors.
README.md

rmuc2021_ignition_simulator

1.简介

rmuc2021_ignition_simulator是基于Ignition Gazebo的仿真环境，为RoboMaster University Championship 2021中的机器人算法开发提供仿真环境，加快开发效率，目前仅提供简易场地。

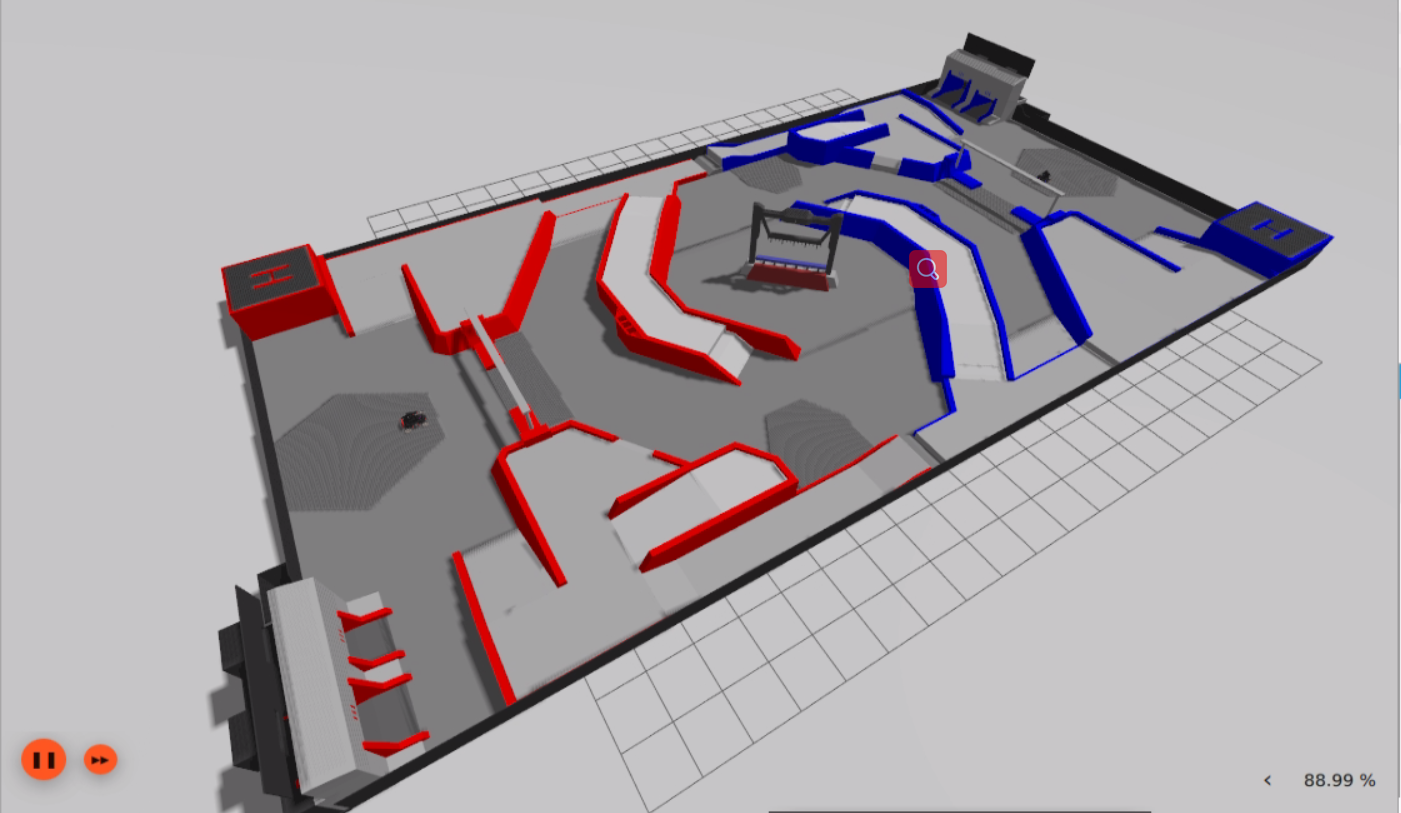

  • RoboMaster University Championship 2021简易场地模型：
    • 模型来自于robomaster BBS论坛官方发布 （2020.11.27版），若存在区别和误差，以官方为准。
    • 不包括基地，前哨站，能量机关等复杂设施，也不包含场地纹理。

注意：Ignition Gazebo目前依然处于快速开发期，仿真功能不完善，且可能存在Bug。

2.使用说明

环境配置

ROS2和Ignition版本

  • ROS2：galactic
  • Ignition：Edifice
# install ros-ign package
sudo apt-get install ros-foxy-ros-ign
# sdf xml macro tool
pip install xmacro
# cd src directory of ros2 workspace
git clone https://github.com/robomaster-oss/rmoss_interfaces
git clone https://github.com/robomaster-oss/rmoss_ign
git clone https://github.com/robomaster-oss/rmoss_ign_resources
git clone https://github.com/robomaster-oss/rmua19_ignition_simulator
git clone https://github.com/robomaster-oss/rmuc21_ignition_simulator
# cd ros2 workspace
colcon build
  • 使用rmua19_ignition_simulator中的标准步兵机器人，所以依赖于rmua19_ignition_simulator.

启动仿真环境

ros2 launch rmuc21_ignition_simulator standard_robot1v1.launch.py
  • 注意：需要点击ignition界面上的橙红色的启动按钮

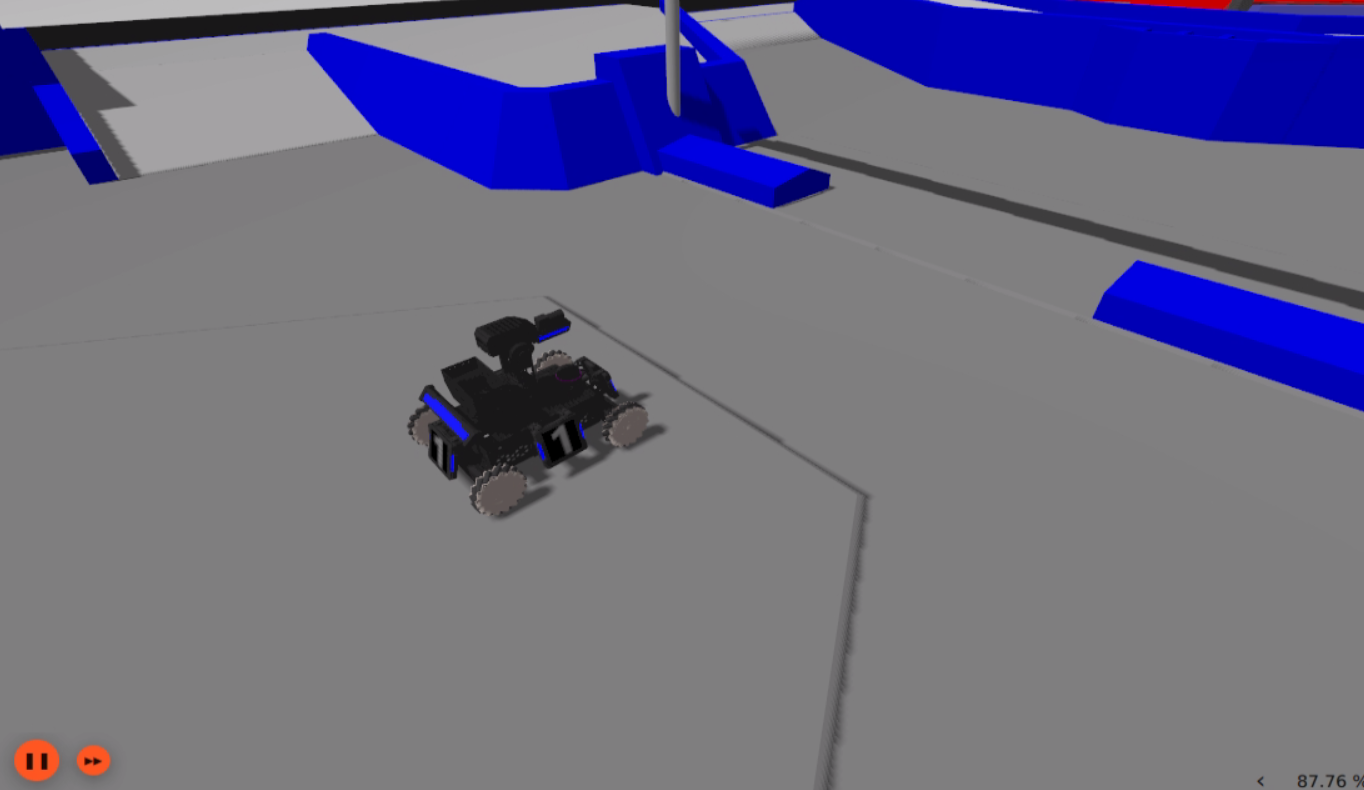

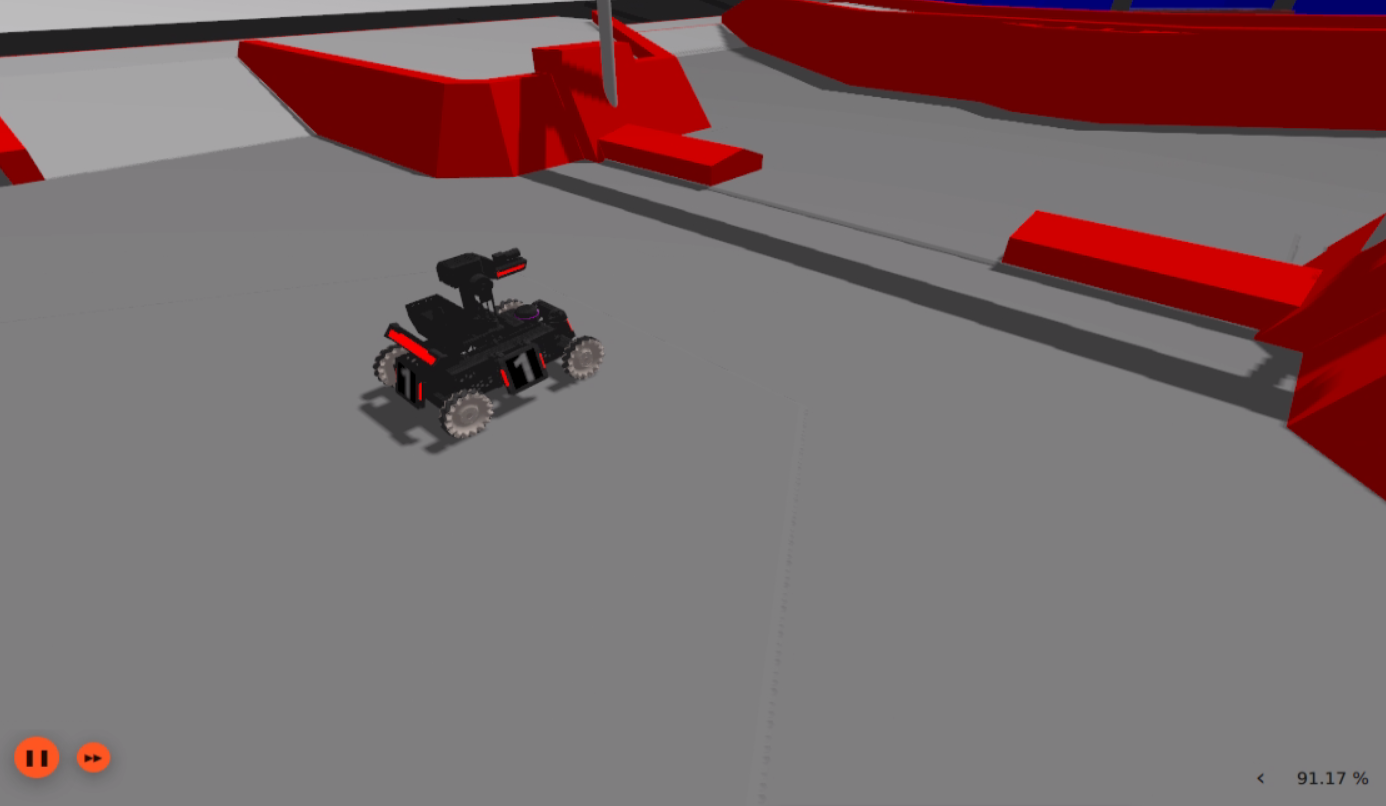

包含两个步兵机器人(red1和blue1)

控制机器人移动 （以red1步兵机器人为例）

ros2 run rmoss_ign_base test_chassis_cmd.py  --ros-args -r __ns:=/standard_robot_red1 -p v:=0.3 -p w:=0.3

根据以下提示输入

This node takes keypresses from the keyboard and publishes them
as ChassisCmd messages.
---------------------------
Moving around:
        w
   a    s    d
turn : '[' for left  ']' for right
stop : space key
---------------------------
CTRL-C to quit

控制机器人云台 （以red1步兵机器人为例）

ros2 run rmoss_ign_base test_gimbal_cmd.py  --ros-args -r __ns:=/standard_robot_red1

根据以下提示输入

This node takes keypresses from the keyboard and publishes them
as GimbalCmd messages.
---------------------------
contorl around:
        w
   a    s    d
change  interval : '[' to decrease,  ']' to increase
---------------------------
CTRL-C to quit

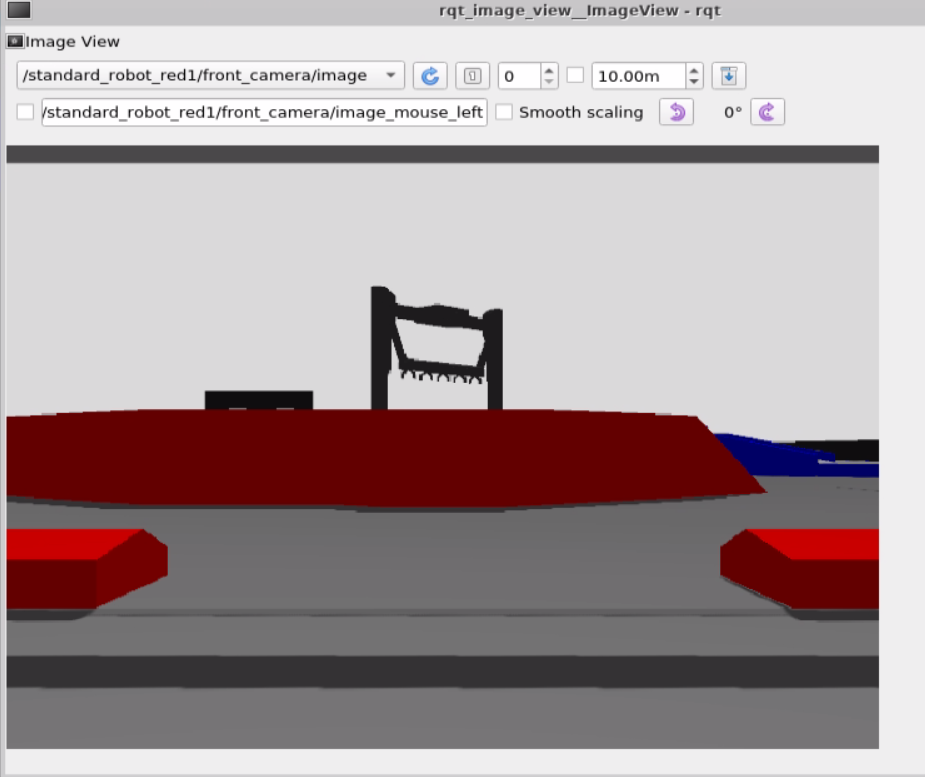

云台相机图像查看

ros2 run rqt_image_view rqt_image_view
  • 选择相应topic即可

3.维护者及开源许可证

maintainer: Zhenpeng Ge, zhenpeng.ge@qq.com

rmuc2021_ignition_simulator is provided under MIT License.
