Allan ROS2

ROS2 package for analysing noise parameters in IMU’s using allan deviation. Designed for use with Kalibr and PX4.

Note : This package is under development. If you find any bugs or errors create an issue, or even better a PR fixing it.

Features

1. Outputs noise parameters file for use with Kalibr, Follows the Kalibr IMU Noise Model.
2. Supports sensor_msgs/Imu , px4_msgs/SensorCombined , px4_msgs/VehicleImuStatus to read PX4-ROS2 bags, No conversion required.

Usage

This package has been tested with ROS2 Foxy and Humble

Build

   # create a new ros2 workspace
   mkdir ~/allan_ws && cd ~/allan_ws
   mkdir src && cd src

   # clone 'px4_msgs'
   git clone https://github.com/PX4/px4_msgs.git

   # clone the package
   git clone https://github.com/CruxDevStuff/allan_ros2

   cd ~/allan_ws

   # install dependencies
   rosdep install --from-paths src -y --ignore-src

   # build the workspace
   colcon build

Configure

Populate the parameters in

``` with the appropriate values for you bag. [example configuration files](https://github.com/CruxDevStuff/allan_ros2_dev/tree/main/config)

```yaml
allan_node:
  ros__parameters:
     topic: # /your/topic
     bag_path: # path/to/bag.db3
     msg_type: # use 'ros' / 'px4_sensorcombined' / 'px4_vehicleimustatus'
     publish_rate: # imu publish rate (hz)
     sample_rate: # rate to sample data from bag. Higher sample rates take longer to compute

Note : Requires rebuilding after configuration colcon build --packages-select allan_ros2 . This will be fixed in a future release.

Run

Launch the node

   # requires building after changing config
   colcon build --packages-select allan_ros2

   # source the workspace
   source ~/allan_ws/install/setup.bash

   # launch the node
   ros2 launch allan_ros2 allan_node.py

Output

The node outputs

``` and contains the computed raw deviation values for all 6 axis.

### Launch output

[allan_node-1] [INFO] [1673168790.110605813] [allan_node]: IMU Topic set to : # topic in config.yaml [allan_node-1] [INFO] [1673168790.110669795] [allan_node]: Sample rate set to : # sample rate in config.yaml [allan_node-1] [INFO] [1673168790.111149862] [rosbag2_storage]: Opened database # path set in config.yaml [allan_node-1] [INFO] [1673168793.933100186] [allan_node]: Bag length (Seconds): # detected bag length [allan_node-1] [INFO] [1673168793.933151985] [allan_node]: Sampling data from bag… [allan_node-1] [INFO] [1673168799.354297658] [allan_node]: Total samples : # samples taken from bag [allan_node-1] [INFO] [1673168799.354340691] [allan_node]: Computing variance and deviation [allan_node-1] [INFO] [1673168804.424160542] [allan_node]: DONE, deviation output logged to ‘deviation.csv’

### Example
```deviation.csv

   # sample period     # accel x    # accel y    # accel z    # gyro x     # gyro y     # gyro z
78.10000000000000853, 0.0007594614, 0.003055848, 0.001219371, 0.001133672, 0.001355157, 0.001293785
78.20000000000000284, 0.0007684184, 0.003033959, 0.001216356, 0.001142654, 0.001362136, 0.001301119
78.30000000000001137, 0.0007739545, 0.002989617, 0.001177716, 0.001129241, 0.001408807, 0.001358467
78.40000000000000568, 0.0007518549, 0.003035895, 0.001149335, 0.00116584,  0.00140981,  0.001331341

Noise parameters

To obtain the noise paramaters run

``` with deviation data.

```analysis.py
``` outputs
```imu.yaml
``` and deviation plots.
```imu.yaml
``` contains the
```random_walk
``` and
```noise_density
``` values for the IMU and follows the kalibr [IMU Noise Model](https://github.com/ethz-asl/kalibr/wiki/IMU-Noise-Model)

```bash
python3 src/allan_ros2/scripts/analysis.py --data deviation.csv

Example

#Accelerometers
accelerometer_noise_density: 1.86e-03   # noise density (continuous-time)
accelerometer_random_walk:   4.33e-04   # bias random walk

#Gyroscopes
gyroscope_noise_density:     1.87e-04   # noise density (continuous-time)
gyroscope_random_walk:       2.66e-05   # bias random walk

rostopic:                               # fill your imu topic
update_rate:                            # fill your imu publish rate (hz)

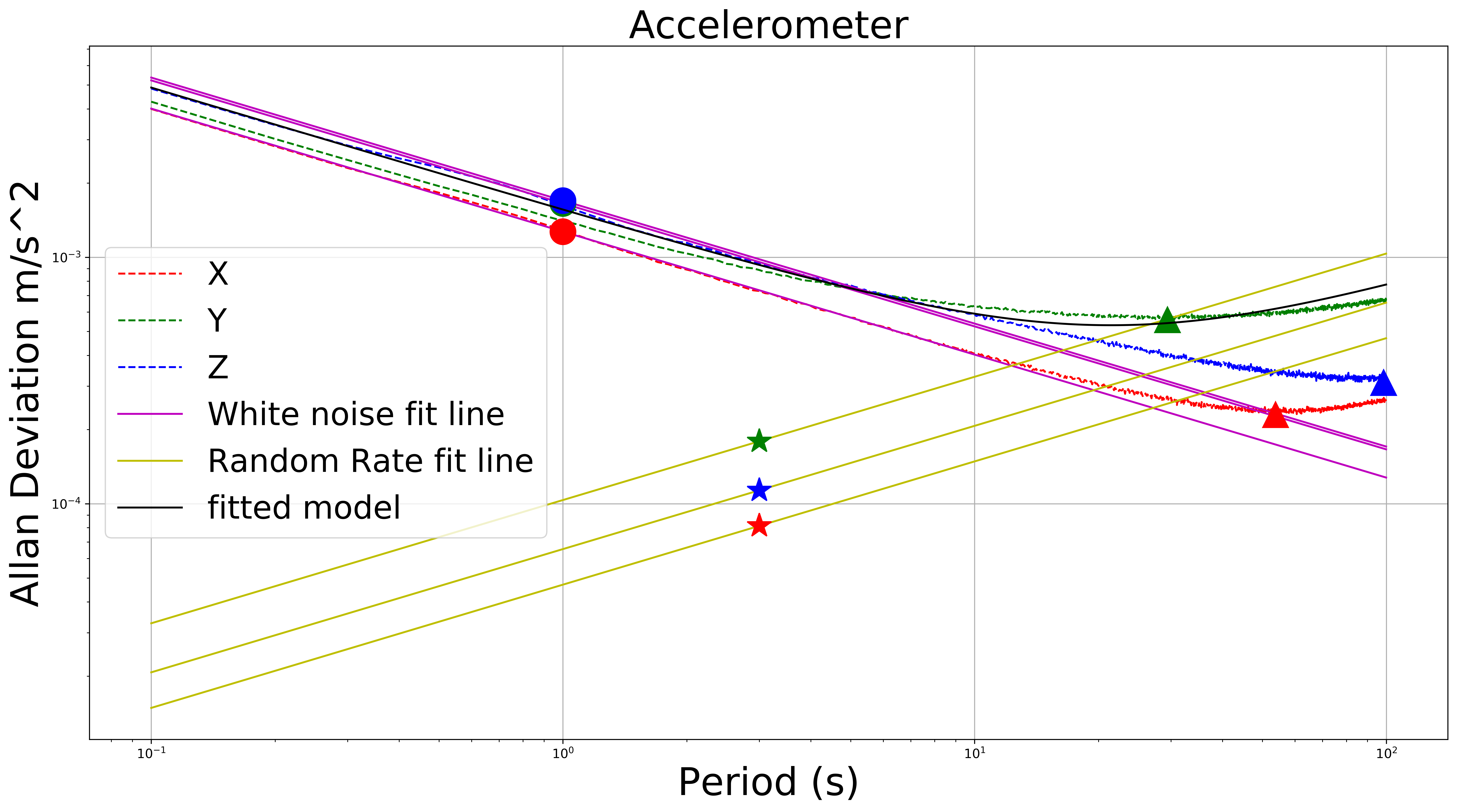

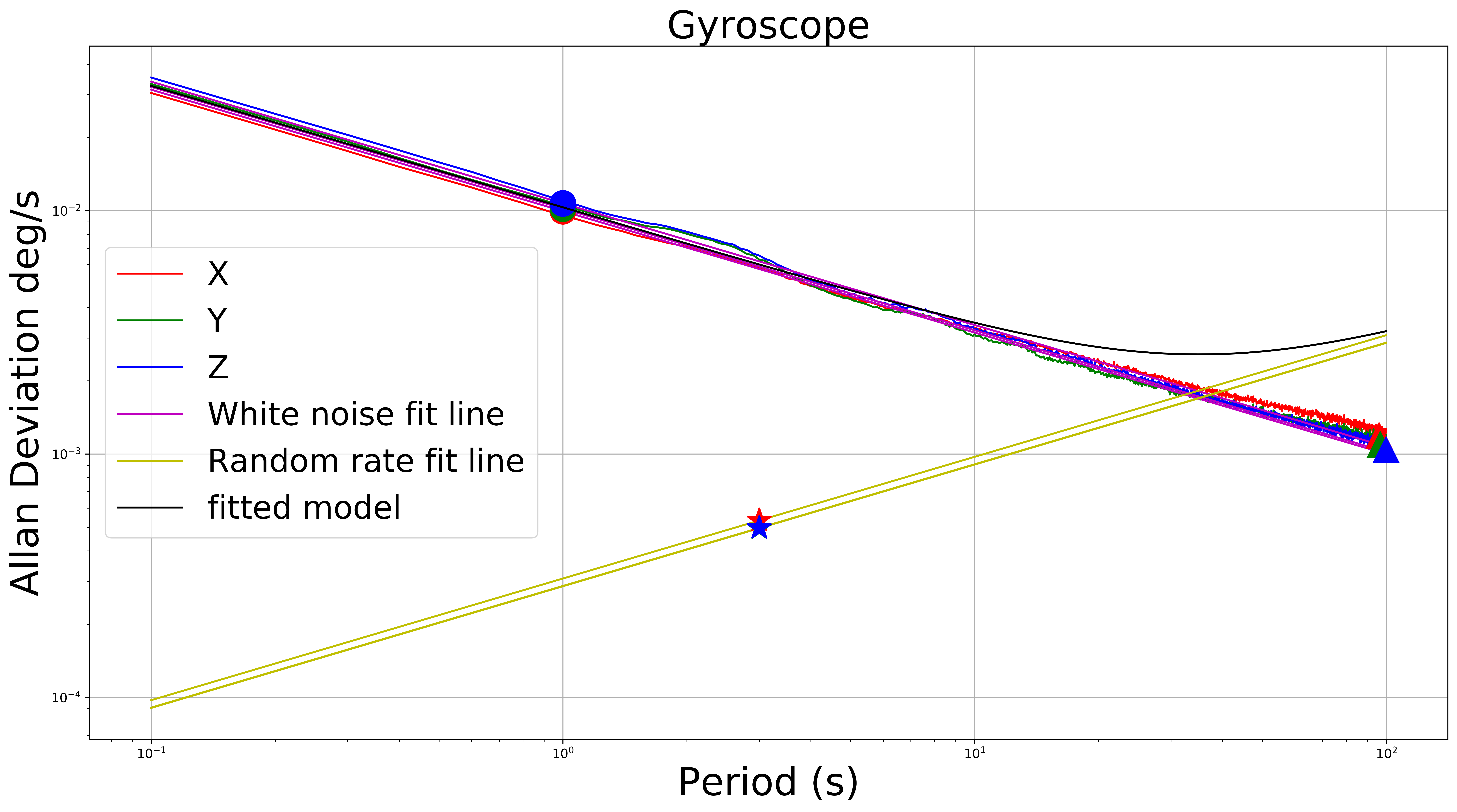

Plots

Acknowledgements

Thanks to Russell Buchanan. Computation code adapted from allan_variance_ros
