Repository Summary
| Description | |
| Checkout URI | https://github.com/road-balance/gcamp_ros2_basic.git |
| VCS Type | git |
| VCS Version | main |
| Last Updated | 2023-03-16 |
| Dev Status | UNKNOWN |
| CI status | No Continuous Integration |
| Released | UNRELEASED |
| Tags | No category tags. |
| Contributing |
Help Wanted (0)
Good First Issues (0) Pull Requests to Review (0) |
Packages
| Name | Version |
|---|---|
| cpp_action_pkg | 0.0.0 |
| cpp_first_pkg | 0.0.0 |
| cpp_param_pkg | 0.0.0 |
| cpp_service_pkg | 0.0.0 |
| cpp_service_tutorial | 0.0.0 |
| cpp_topic_pkg | 0.0.0 |
| custom_interfaces | 0.0.0 |
| gcamp_gazebo | 0.0.0 |
| py_action_pkg | 0.0.0 |
| py_first_pkg | 0.0.0 |
| py_service_pkg | 0.0.0 |
| py_topic_pkg | 0.0.0 |
README
GCamp ROS 2 Basic
ROS 2 Basics with Gazebo Simulations
Feel Free to use this repo as an template code 😀
News
There’s Youtube Lecture note for all codes, all packages (Written in Korean)
There’s Lecture note for all codes, all packages (Written in Korean)
You can pull prepared Docker Image for this lecture. All you need to install is already prepared in this setup!
docker pull tge1375/gcamp-ros2-foxy:0.0.4
docker run -it -p 6080:80 --name gcamp_ros2_foxy --privileged tge1375/gcamp-ros2-foxy:0.0.4
# open your web brower and enter to http://127.0.0.1:6080
(Special thanks to Tiryoh )
Comming Soon… All process with *Windows OS*
Repo Structure
├── cpp_first_pkg
├── cpp_topic_pkg
├── cpp_service_pkg
├── cpp_action_pkg
├── py_first_pkg
├── py_topic_pkg
├── py_service_pkg
├── py_action_pkg
├── custom_interfaces
├── gcamp_gazebo
└── image
-
gcamp_gazebo: Gazeobo Package with Worlds and Robot. -
cpp_<sth>_pkg: C++ ROS 2 packages for each ROS Communication Mechanisms -
py_<sth>_pkg: Python ROS 2 packages for each ROS Communication Mechanisms -
custom_interfaces: Package for custom ROS 2 communication interfaces
Examples - rclpy
Topic Examples
- Available nodes and Execution commands
ros2 run py_topic_pkg cmd_vel_pub_node
ros2 run py_topic_pkg laser_raw_node
ros2 run py_topic_pkg laser_sub_node
ros2 run py_topic_pkg parking_node
Project - Parking
Use ROS 2 topic to park the robot correctly in the simulation.
- LaserScan data Subscribe
- Twist publish
Service Examples
- Available nodes and Execution commands
ros2 run py_service_pkg gazebo_model_spawner
ros2 run py_service_pkg robot_turning_server
ros2 service call /turn_robot custom_interfaces/srv/TurningControl "{time_duration: 5, angular_vel_z: 1.0, linear_vel_x: 0.5}"
ros2 service call /delete_entity gazebo_msgs/srv/DeleteEntity "{name: 'skidbot'}"
ros2 run py_service_pkg robot_turning_client
Project - Spawn Cloned Robot
Use ROS 2 service to bring a robot into the simulation.
- ROS Gazebo Service
- Service Client
- URDF
Action Examples
- Available nodes and Execution commands
ros2 run py_action_pkg fibonacci_action_server
ros2 run py_action_pkg fibonacci_action_client
ros2 run py_action_pkg fibonacci_action_server_cancel
ros2 run py_action_pkg fibonacci_action_client_cancel
ros2 action send_goal fibonacci custom_interfaces/action/Fibonacci "{order: 5}"
ros2 action send_goal --feedback fibonacci custom_interfaces/action/Fibonacci "{order: 5}"
ros2 run image_view image_view --ros-args --remap /image:=/diffbot/camera_sensor/image_raw
ros2 run py_action_pkg img_subscriber_node
ros2 run py_action_pkg odom_sub_node
ros2 run py_action_pkg robot_controller
ros2 run py_action_pkg maze_action_server
ros2 run py_action_pkg maze_action_client
ros2 action send_goal --feedback maze_action custom_interfaces/action/Maze "{turning_sequence: [2,1,0,1,2]}"

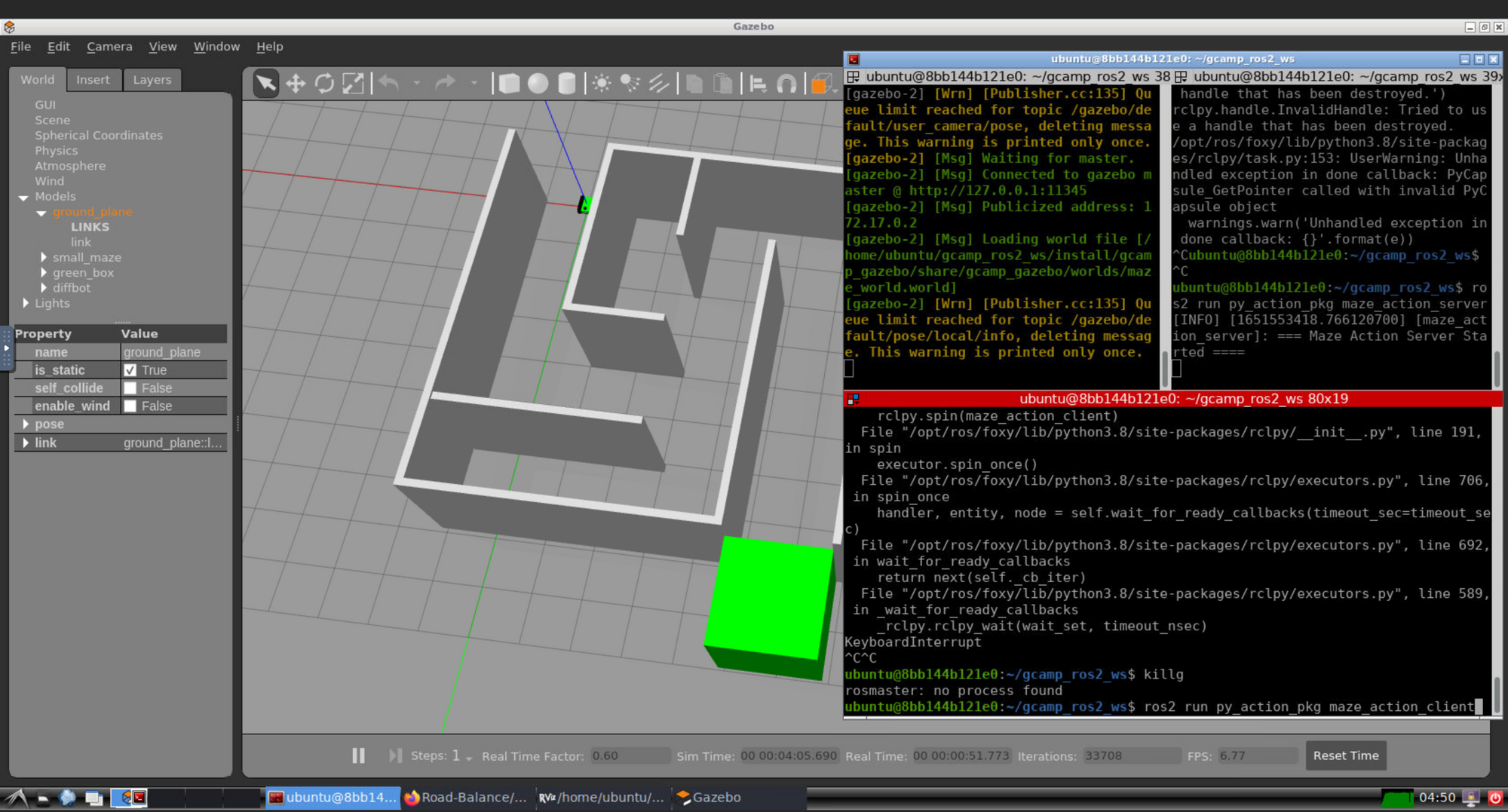

Project - Maze Escape
Use ROS 2 action to get the robot out of the maze.
- Action Client & Server
- ROS 2 odometry
- OpenCV

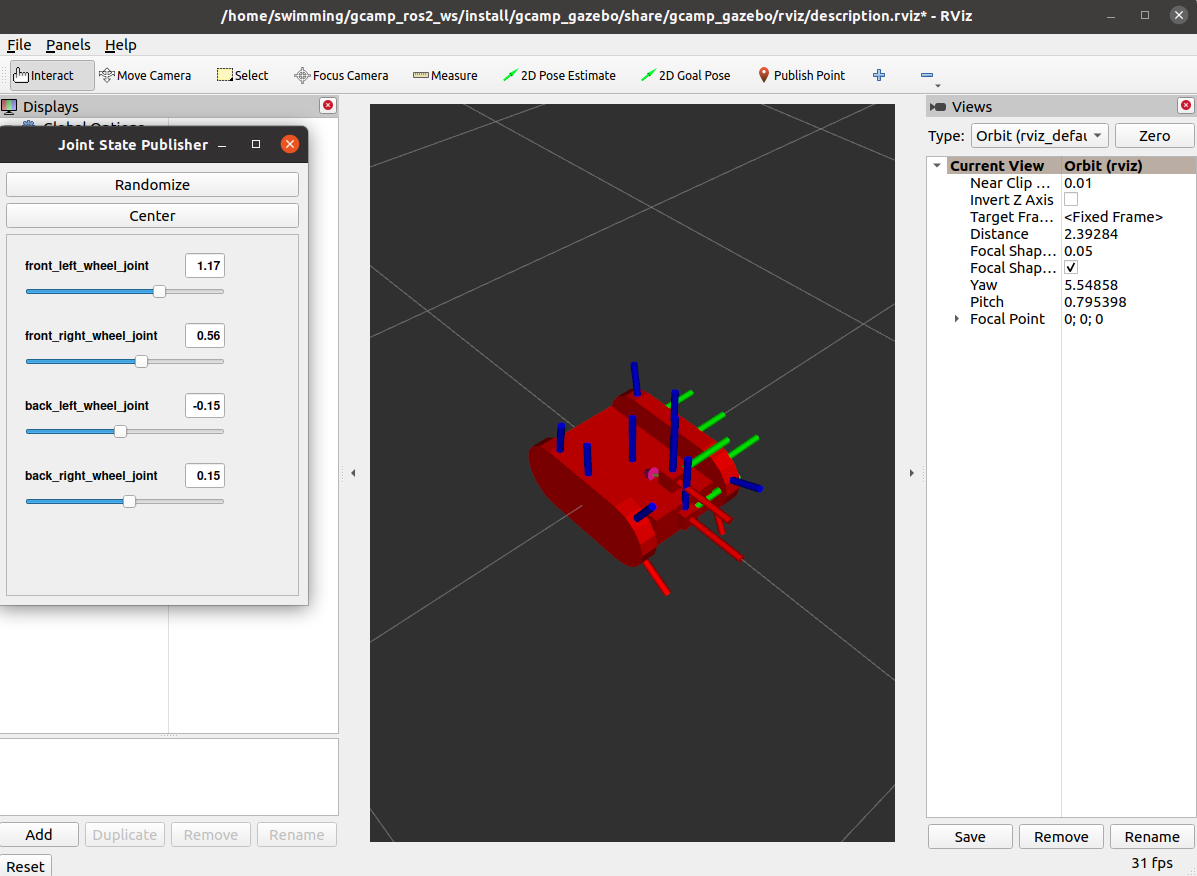

Theory - Robot Dynamics
- Make skid_drive robot and differential_drive robot with URDF, and make them moving in Gazebo Environment.
- Check difference btw them
Update & TODO
- Tutorial for Windows Users
- Renew tutorial with NVIDIA Isaac Sim
Contributor
- Package Development : kimsooyoung
- Error Review & Contribution : YoonSeok Pyo
CONTRIBUTING
No CONTRIBUTING.md found.
