README

BEVfusion_demo

녹화_2023_08_22_10_53_21_137

Abstract

This project is based on BEVFusion. The version of BEVFusion using ROS2.

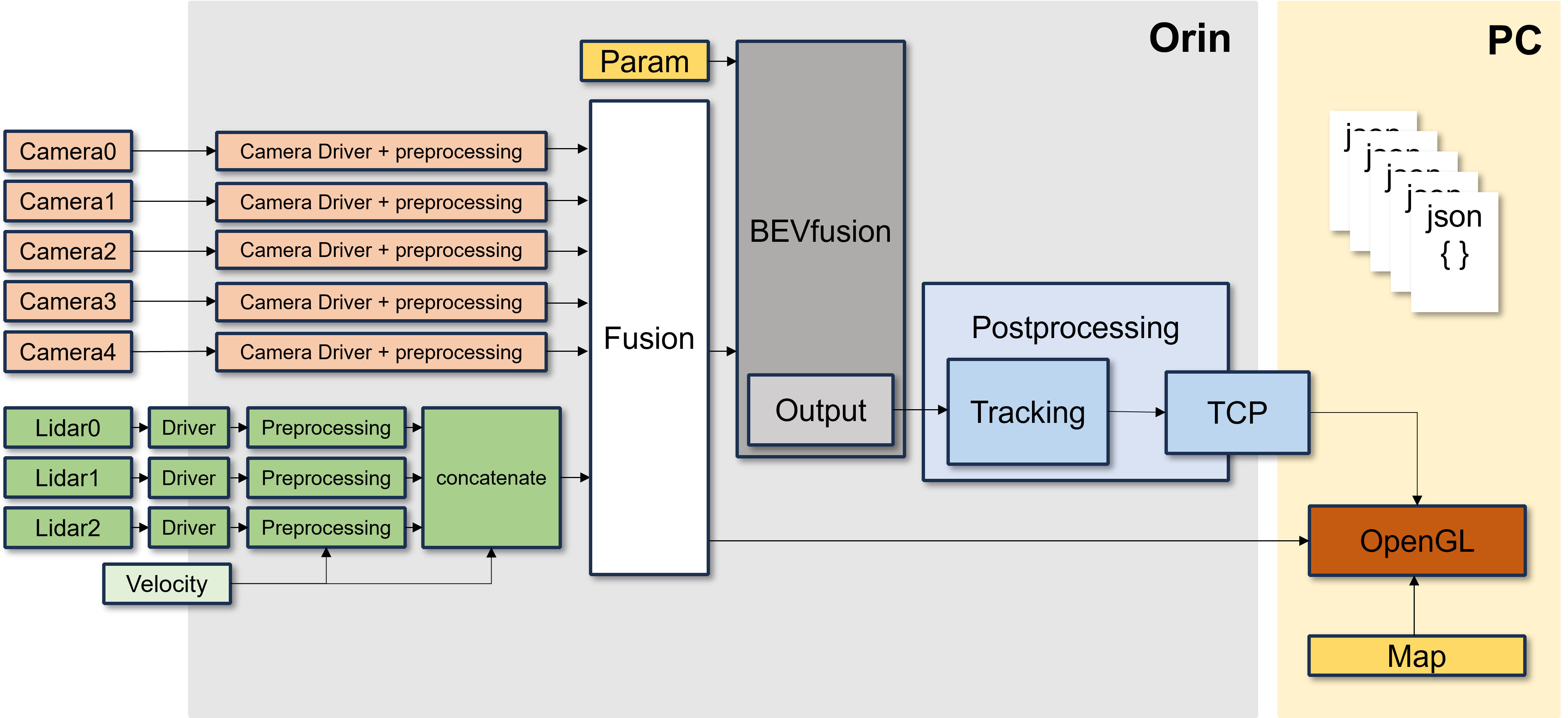

Flow

Usage

Dataset: nuscenes ROS2 bag

Requirements

  • ROS2 (Foxy)
  • Pytorch
  • CUDA 11.4

How to start

Data Preparation

This project is using the nuscenes dataset.

  1. Create a .pkl file containing calibration results. (Details HERE)

  2. Create the calibration_parameter.yaml file using the .pkl file.
    • sensor2lidar rotation (3x3 matrix),
    • sensor2lidar translation (3x1 matrix),
    • Intrinsic matrix (3x3 matrix)
  3. Create four 4x4 matrices below and update the calibration_parameter.yaml file. Format:

    • 6 camera intrinsic 4x4 matrices
      • Rotation: camera intrinsic matrix
      • Translation: zero matrix
    • 6 camera2lidar 4x4 matrices
      • Rotation: sensor2lidar rotation matrix
      • Translation: sensor2lidar translation matrix
    • 6 lidar2camera 4x4 matrices
      • Rotation: Transformation of sensor2lidar rotation matrix
      • Translation: Convolution of Transformation sensor2lidar translation and sensor2lidar rotation matrix
    • 6 lidar2image 4x4 matrices
      • Using the file ./tools/lidar2image.py
        • Input: The calibration_parameter.yaml file which has the information of the 3 matrices above.
        • Output: The lidar2image 4x4 matrix
      • Add this output matrix to the calibration_parameter.yaml file which is used as input
  4. Convert to a .bag file using nuscenes2bag.

    This converts the nuscenes dataset to a ROS1 bag file, so you have to convert it to ROS2 format. We used the library rosbag_convert

Run

torchpack dist-run -np 1 python tools/BEVfusion_exe.py

Detail

We have several points of upgrade from the original BEVfusion.

Number of Sensors

Multiple Cameras & Multiple Lidars We have a preprocessing module because of using 3 Lidars and 6 Cameras. However, this repository is the DEMO version of our project, so we are using 1 Lidar and 1 Camera.

Lidar Preprocessing

Details: Preprocessing_module branch 1Lidar

Differences

Original BEVfusion:

Using a static Dataset

  • Large amount of data
  • Calibrating all sensors with their own ego_frame (IMU)
  • No Tracking ID
  • Object detection using Map information inside the model’s own map segmentation

BEVfusion with ROS2:

Using a Realtime Dataset

  • It is necessary to manage data efficiently when using realtime data -> Reduce the data size by preprocessing sensor’s raw data
  • Remove the IMU dependency for ego_frame (IMU)
  • Direct Calibration of Camera to Lidar and transform to Model as parameter type (.yaml)
  • Add detected object’s own ID using 2D Object Tracking (SORT Algorithm) in the Bird’s-eye view plane
  • Remove the map segmentation part, and visualize object’s information using the HD map

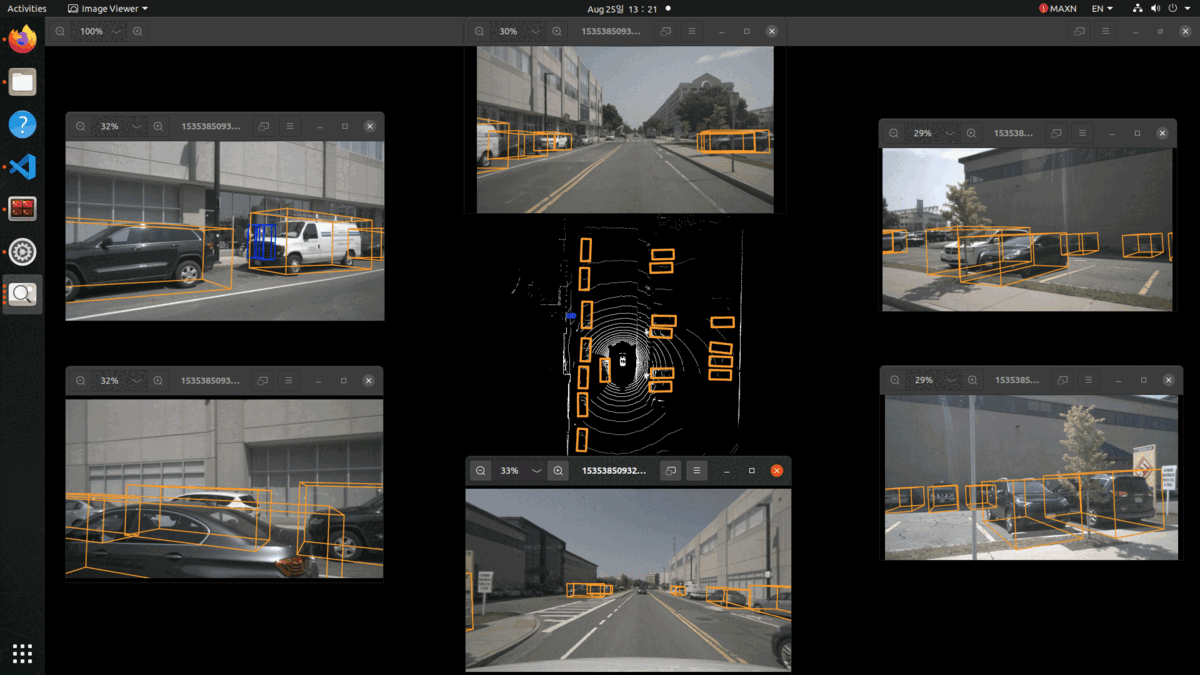

Results

Team

Name Mail Role Github
임승휘 iish613613@gmail.com Model Transform </br> Build Orin </br> General Manager @SeungHwi0613
신지혜 jshin0404@gmail.com Lidar Preprocessing @NewIntelligence4
장재현 wogus5216@gmail.com Postprocessing @JaehyunJang5216
