ROS2 + KITTI: Objet detection & Stereo depth estimation

• Visualize raw images and point cloud in ROS2
• Implement object detection algorithm YOLOv5
• Implement stereo depth estimation algorithm SGBM

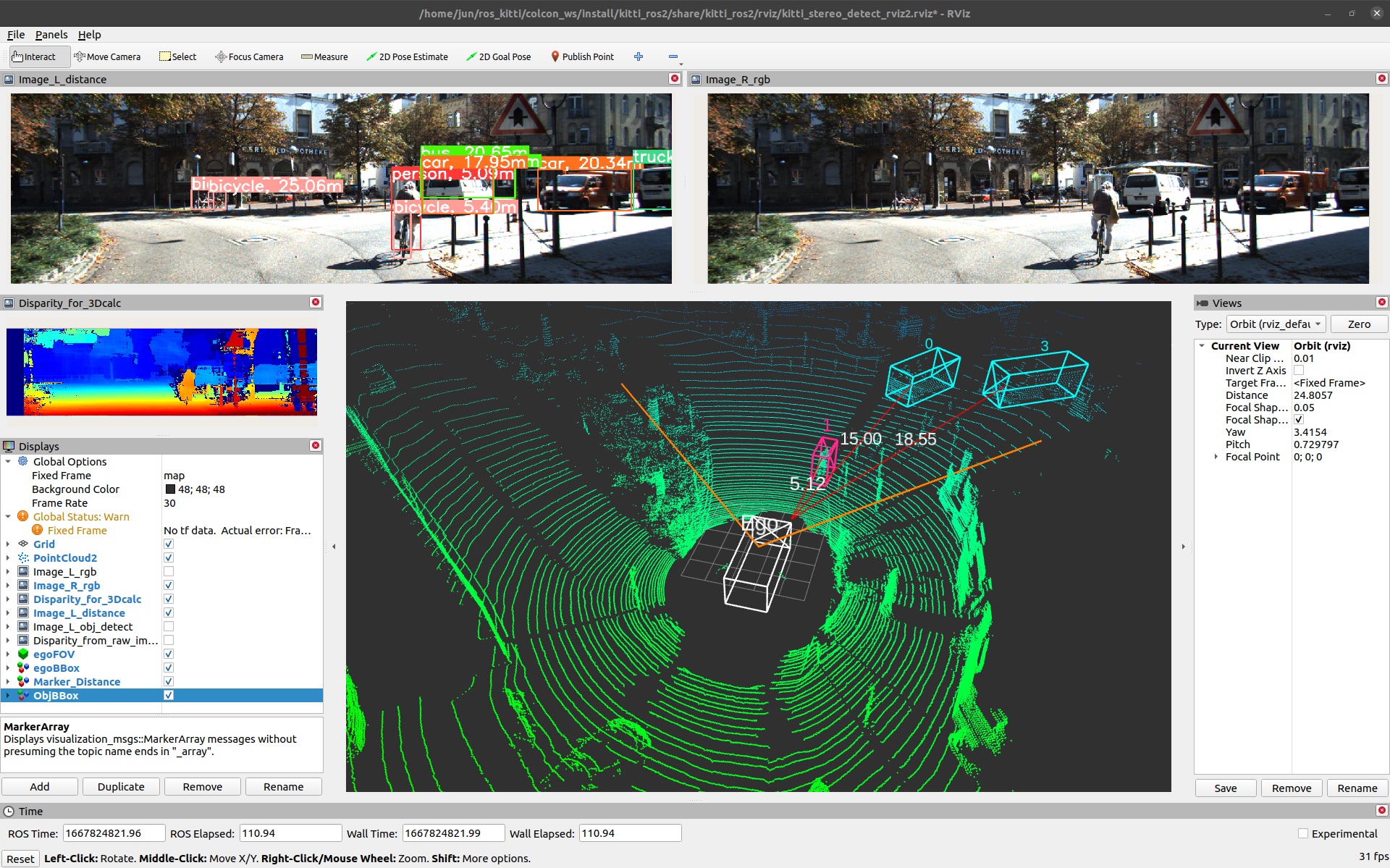

Visualization

Software pipeline

Software pipeline

Prerequisitions

Install ROS2-galactic

• For ROS2 install follow the official documentation

  What if I have to install ROS2 with ROS1 already in my PC?
  $\to$ Settings for ROS2 coexistence with ROS1.

• Install tf-transformations

  sudo apt-get install ros-galactic-tf-transformations


for other ros2 distors substitude the galactic with your distro name

Build and Run

Clone the repository to local

git clone https://github.com/junmeng6025/ros2_kitti.git

Install libiaries for YOLOv5

cd ros2_kitti
pip install -r requirements.txt

• If you run into errors that claims missing some python libraries, please check requirements.txt in /colcon_ws/src/kitti_ros2/yolov5.
• Or you can use rosdep to install dependencies automatically. (See below Possible issues)
• Or install the missing libraries according to the error messages …

  Download KITTI dataset and extract

  see Data preparation

  Build the workspace

• use colcon build command to generate executable files automatically

  cd ros2_kitti/colcon_ws


! ALWAYS make sure you’ve sourced ROS2 to your current terminal before “colcon build”

  source /opt/ros/galactic/setup.bash
  colcon build


use the command echo ${ROS_DISTRO} to check the current ROS distro in your working Terminal
make sure it returns galactic or other ROS2 distro

• after build, copy the folder /data in

    /src/kitti_ros2/yolov5


to

    /install/kitti_ros2/lib/python3.8/site-packages/yolov5


Launch the nodes

source the setup.sh to current terminal

# stay in the directory /ros2_kitti/colcon_ws
source install/setup.sh

ros2 launch kitti_ros2 kitti_stereo_detect.launch.py

There are two other options:

• B: Visualize KITTI data in Rviz without detection or depth estimation

  ros2 launch kitti_ros2 kitti_visualization.launch.py


• C: Implement the detection but without depth estimation

  ros2 launch kitti_ros2 kitti_detect.launch.py


Possible issues:

1) Coexist ROS1 and ROS2

Settings for ROS2 coexistence with ROS1.

2) Use rosdep or rosdepc (‘c’ for Chinese)

rosdepc is a tool that can help to install all the dependencies for a workspace automatically.

install and initialize rosdepc

sudo pip3 install rosdepc
sudo rosdepc init & rosdepc update

install dependencies for workspace

# cd to the workspace root path
rosdepc install -i --from-path src --rosdistro galactic -y
