airship_object

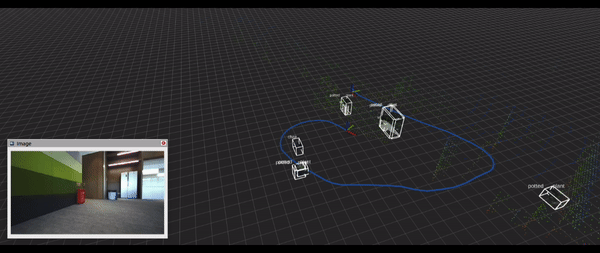

This project integrates pose estimation and RGB-D cameras to achieve semantic segmentation and localization of objects in the environment. By utilizing point cloud clustering and grouping algorithms, the project accomplishes the annotation of objects in three-dimensional space, which is used to generate object navigation points.

airship_object API Overview

object_map_node

• default config: airship_object/config/config.yaml

1. Subscribed Topics
   • topic_sub_depth: Subscribes to depth information for object localization. (Default: /zed/zed_node/depth/depth_registered)
   • topic_sub_image: Receives image data from visual sensors to be used for object segmentation. (Default: /zed/zed_node/left_gray/image_rect_gray)
   • topic_sub_odometry: Collects odometry data to track the robot’s movement and position over time for object map creation. (Default: /tracked_pose)
2. Published Topics
   • topic_pub_keyframe_cloud: Publishes point cloud data based on keyframes. (Default: /airship_object/keyframe_cloud)
   • topic_pub_keyframe_marker: Publishes bounding boxes based on keyframes, without clustering and segmentation. (Default: /airship_object/keyframe_marker)
   • topic_pub_object_marker: Publishes bounding boxes based on keyframes, with clustering and segmentation. (Default: /airship_object/object_marker)
   • topic_pub_object_nav_goal_marker: Publishes markers indicating navigation goals associated with detected objects. (Default: /airship_object/object_nav_goal_marker)
   • topic_pub_object_segmentation: Publishes object segmemtation results. (Default: /airship_object/object_segmentation)
3. Service
   • /airship_object/save_object_nav_goal: Provides a service to save navigation goals linked to specific objects.

# The following example save object navigation goal in `/home/airsbot2/nav_goal.yaml`.
export PATH_NAV_GOAL_YAML=/home/airsbot2/nav_goal.yaml
ros2 service call /airship_object/save_object_nav_goal airship_interface/srv/SaveObjectNavGoal "{path_nav_goal_list: '${PATH_NAV_GOAL_YAML}'}"

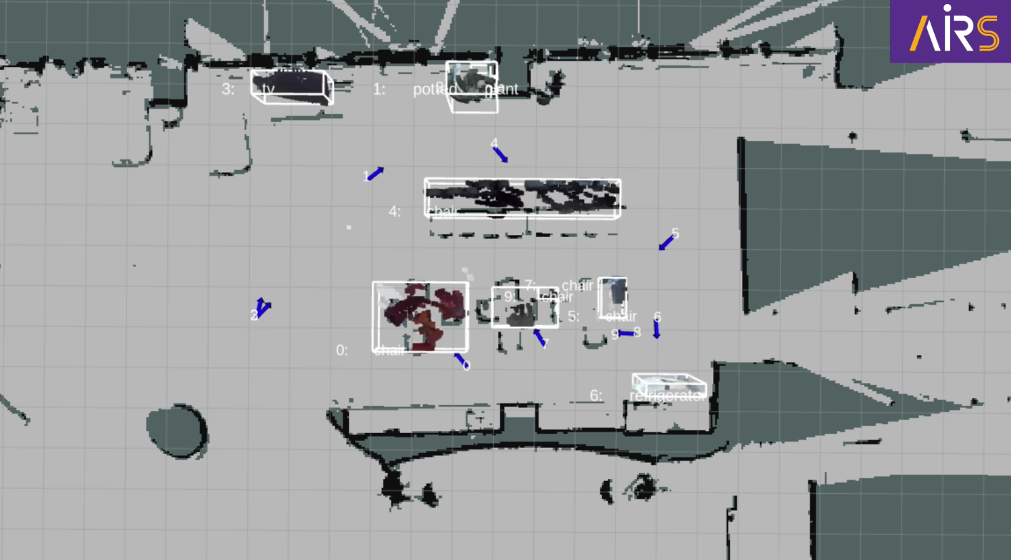

In the figure, the blue arrow represents the navigation endpoint for a certain object, including the X, Y coordinates and directional information.

1. Parameters
   • message_type_odomtry: The message type of pose estimation currently supports nav_msgs/Odometry and geometry_msgs/PoseStamped. (Default: PoseStamped)
   • path_config_object_depth: The configuration path for lib/object_depth. (Default: config_object_depth.yaml)
   • path_config_segmentation_service_client: The configuration path for lib/segmentation_service_client. (Default: config_segmentation_service_client.yaml)

lib/object_depth

• default config: airship_object/config/config_object_depth_zed2.yaml

1. Parameters
   • K: Depth camera intrinsic. (Default: none)
   • image_width: The image width of depth maps and object segmentation images. (Default: none)
   • image_height: The image height of depth maps and object segmentation images. (Default: none)
   • R: The extrinsic parameters, rotation component, from camera_optical_frame to base_link, using base_link as the origin. (Default: none)
   • T: The extrinsic parameters, translation component, from camera_optical_frame to base_link, using base_link as the origin. (Default: none)
   • erosion_size_kernel: Defines the kernel size for erosion to filter edge errors in the segmentation mask. (Default: 6)
   • erosion_num_iterations: Specifies the number of erosion iterations to refine edges in the segmentation mask. (Default: 2)

lib/segmentation_service_client

• default config: airship_object/config/config_segmentation_service_client.yaml
  1. Parameters
• name_segmentation_service_server: As a service client, define this parameter based on the name of the segmentation service server. (Default: /airship_perception/seg2map)
• path_label_table: The path of the table of semantic labels for object segmentation. (Default: /home/airsbot2/airship/src/airship/airship_perception/lib/configs/semantic_label_table.txt)
• request_timeout: The timeout duration for requesting the object segmentation service, in seconds. (Default: 15.0)

To Do List

• Enhance object segmentation algorithms and improve spatial resolution.
• Optimize depth estimation to go beyond using only depth maps from RGB-D cameras.
• Update object positions simultaneously with trajectory optimization during mapping.
• Refine navigation goal positions based on the observed path and obstacle map, adjusting the distance to targets.
• Utilize open vocabulary to interpret spatial information and provide a semantic-based object navigation search interface.
