Carla E2E AV Stack

This repository offers a ready-to-use perception and control stack for autonomous vehicles, designed to streamline development and testing in CARLA. With a simple plug-and-play approach, it provides a foundational pipeline for experimenting with perception algorithms and integrating outputs with planning and control, saving time and letting you focus on innovation.


currently its capable of,

  • load any town’s lanelet map
  • spawn and set goal using rviz
  • Use A-LOAM or SC-A-LOAM for odometry.
  • evaluate odometry based on MSE-ATE, and scale error.
  • Waypoint following using PID control.
  • Run in both ROS1 and ROS2
  • EKF sensor fusion of IMU and LiDAR
  • Add Occupancy grid carla E2E AV

Articles:

  • Setup ROS2 with Carla: https://learnopencv.com/ros2-and-carla-setup-guide/
  • About building this project: https://learnopencv.com/pid-controller-ros-2-carla/
  • LiDAR SLAM: https://learnopencv.com/lidar-slam-with-ros2/

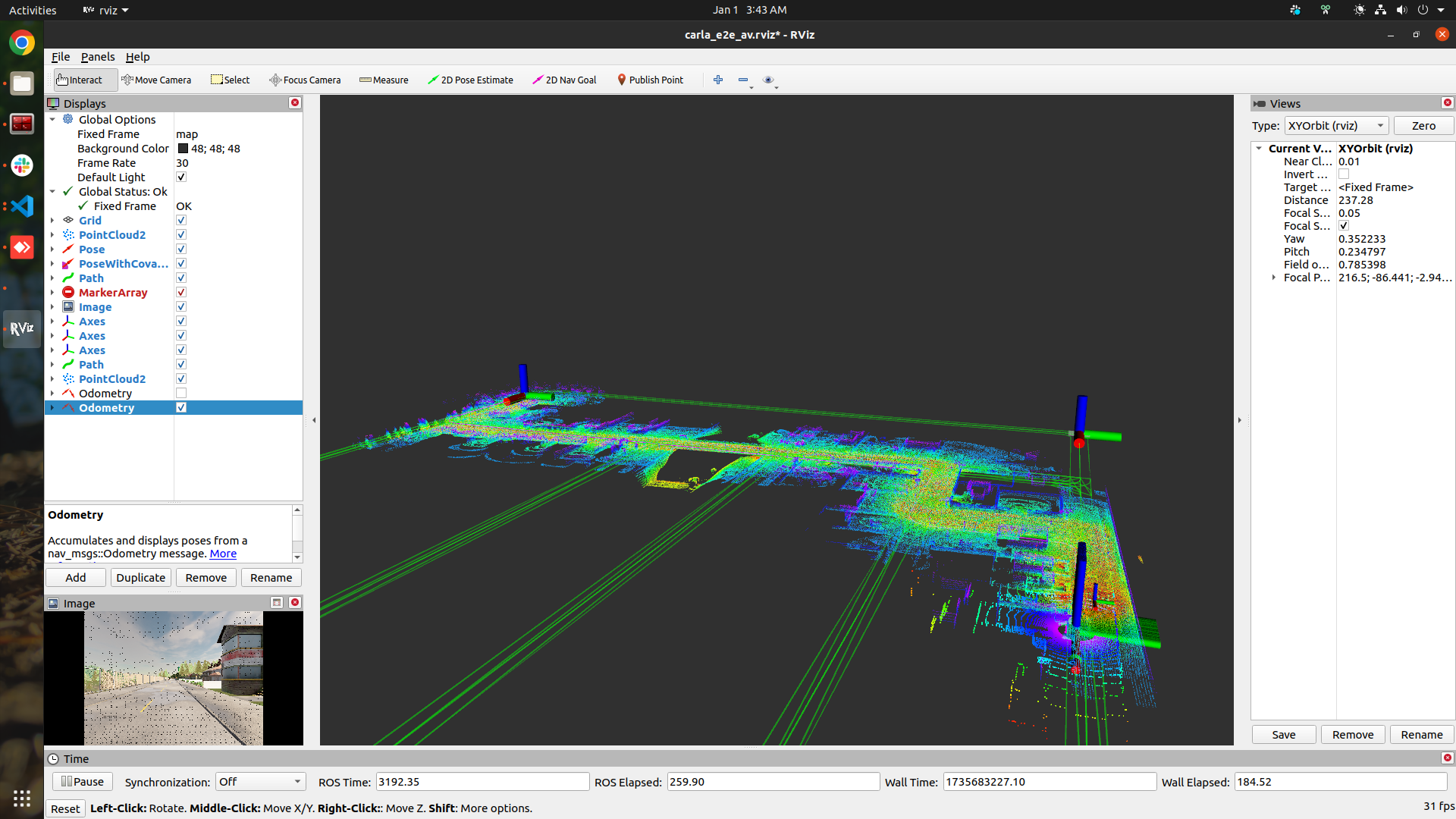

A-LOAM and SC-A-LOAM comparison

Below are two separate tables summarizing A-LOAM and SC-A-LOAM performance based on latency and memory.

A-LOAM SC-A-LOAM

A-LOAM

Parameter Value
Odom Rate 20 Hz (/aft_mapped_path)
Map Rate 1 Hz (/laser_cloud_map)
RMS ATE 0.9114 m
Scale Error 0.15%
/alaserMapping 159800 byte (~159.8 KB)
/alaserOdometry 142164 byte (~142.164 KB)
/ascanRegistration 32060 byte (~32.06 KB)

SC-A-LOAM

Parameter Value
Odom Rate 10 Hz (/aft_pgo_path)
Map Update 0.100 Hz (/aft_pgo_map)
Map Node 233.840 kb
Odometry 142.240 kb
PGO 110.800 kb
Scan Registration 32.004 kb
RMS ATE 14 - 20 m
Scale Error 0.37%

Download bagfile

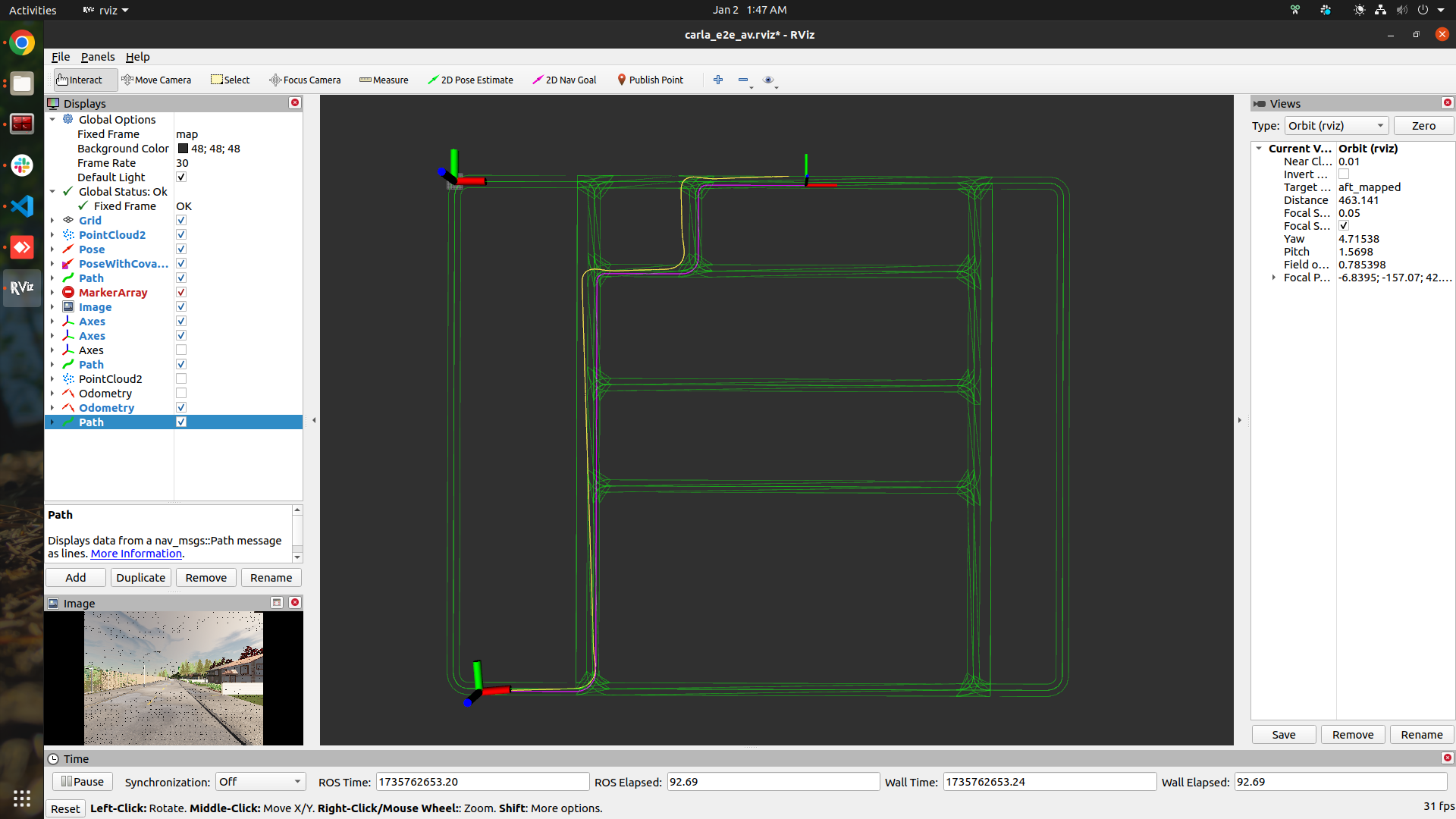

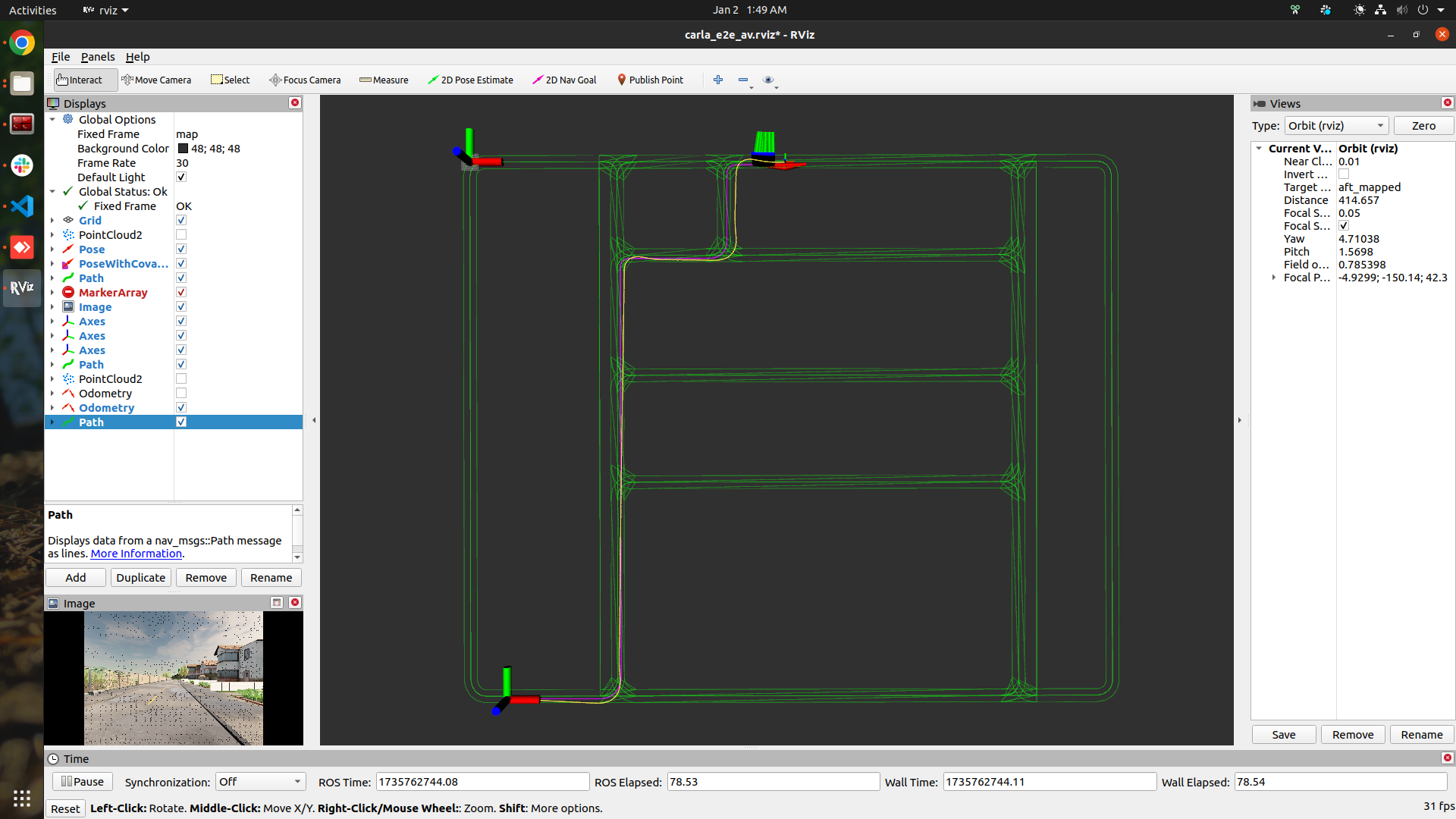

Comparison based on the a fixed trajectory

A-LOAM SC-A-LOAM

Dependency

  • Carla 0.9.11
  • ROS1 noetic and ROS2 humble
  • Ceres Solver , PCL and PCL-conversitions

Run ROS1 code

Run the AV stack without odometry from LOAM in ROS1

build:

$ git clone https://github.com/soumya997/carla-e2e-av-stack.git
$ cd carla-e2e-av-stack/ros1_ws
$ catkin_make
$ source devel/setup.bash

Run the code:

$ $CARLA_ROOT/CarlaUE4.sh -quality-level=Low -prefernvidia -nosound

$ cd /home/opencvuniv/carla-ros-bridge/catkin_ws && source devel/setup.bash
$ roslaunch carla_ros_bridge carla_ros_bridge.launch synchronous_mode:=True town:=Town01

$ cd /home/opencvuniv/carla-ros-bridge/catkin_ws && source devel/setup.bash
$ roslaunch carla_spawn_objects carla_example_ego_vehicle.launch spawn_sensors_only:=False objects_definition_file:=/home/opencvuniv/Work/somusan/robotics/nice_e2e_carla_av/trash/carla_e2e_ws/src/vehicle_ctrl/maps/objects.json

$ cd /home/opencvuniv/carla-ros-bridge/catkin_ws && source devel/setup.bash
$ roslaunch carla_waypoint_publisher carla_waypoint_publisher.launch

$ cd /home/opencvuniv/Work/somusan/robotics/nice_e2e_carla_av/trash/carla_e2e_ws && source devel/setup.bash
$ roslaunch vehicle_ctrl run_vehicle.launch

use the `2D Pose Estimate` to spawn a vehicle and `2D Nav Goal` to give the goal.
now, the car should be start running

Run with A-LOAM/SC-A-LOAM Odometry

  1. uncomment code under # Subscriber to the LOAM odometry topic, and comment out the code under # Subscriber to the /carla/ego_vehicle/odometry topic.
  2. run A-LOAM code using the below code,
$ roslaunch aloam_velodyne aloam_velodyne_VLP_16_v2.launch lidar_topic:=/carla/ego_vehicle/lidar
$ python src/loam_utils/scripts/static_trf_broadcast.py
$ python src/loam_utils/scripts/aloam_odom_trf.py
  1. run A-LOAM code using the below code,
$ roslaunch aloam_velodyne aloam_mulran.launch
$ python src/loam_utils/scripts/static_trf_broadcast.py
$ python src/loam_utils/scripts/aloam_odom_trf.py

Run ROS2 code

Run the AV stack without odometry from LOAM in ROS1. LOAM dont have ROS2 support, so uncomment the code under # Subscriber to the /carla/ego_vehicle/odometry topic and comment the code under # Subscriber to the LOAM odometry topic.

# in a new terminal, run carla first
# ./CarlaUE4.sh  # or ./CarlaUE4.sh -prefernvidia # $ ~/carla_simulator/PythonAPI/util/config.py --map Town01
$CARLA_ROOT/CarlaUE4.sh -quality-level=Low -prefernvidia -nosound

# in a new terminal, get inside the `carla-ros-bridge/colcon_ws` folder and source the workspace; launch the `carla ros-bridge`
cd ~/carla-ros-bridge/colcon_ws && source install/setup.bash
ros2 launch carla_ros_bridge carla_ros_bridge.launch.py synchronous_mode:=True town:=Town01 # <town number, eg: 03>


# in a new terminal, launch the objects.json; launch ros-bridge
# cd ~/carla-ros-bridge/colcon_ws
cd ~/carla-ros-bridge/colcon_ws && source install/setup.bash

ros2 launch carla_spawn_objects carla_example_ego_vehicle.launch.py spawn_sensors_only:=False objects_definition_file:=<absolute path to>/src/vehicle_ctrl/vehicle_ctrl/config/objects.json


# load the town1 lanelet map
python src/vehicle_ctrl/vehicle_ctrl/lanelet_map.py


# in new terminal, launch the rviz2 [set the global frame to map in rviz2]
rviz2 -d /src/vehicle_ctrl/rviz2/carla_map_spawn_anywherev2.rviz


# in a new terminal, get inside the `carla-ros-bridge/colcon_ws` folder and source the workspace; waypoint publisher
cd ~/carla-ros-bridge/colcon_ws && source install/setup.bash
ros2 launch carla_waypoint_publisher carla_waypoint_publisher.launch.py


# goal remap
python src/vehicle_ctrl/vehicle_ctrl/remap_goal.py


# waypoint following using carls ros-bridge
python src/vehicle_ctrl/vehicle_ctrl/simple_ctrl.py

Trouble shoot

  • if getting issue builing the packages, something like
$ colcon build --packages-select pcl_ros
Starting >>> pcl_ros
--- stderr: pcl_ros
CMake Error at CMakeLists.txt:13 (find_package):
  By not providing "FindPCL.cmake" in CMAKE_MODULE_PATH this project has
  asked CMake to find a package configuration file provided by "PCL", but
  CMake did not find one.

  Could not find a package configuration file provided by "PCL" with any of
  the following names:

    PCLConfig.cmake
    pcl-config.cmake

  Add the installation prefix of "PCL" to CMAKE_PREFIX_PATH or set "PCL_DIR"
  to a directory containing one of the above files.  If "PCL" provides a
  separate development package or SDK, be sure it has been installed.

Solution:

- locate PCLConfig.cmake
- $ export PCL_DIR=<path from above command> #/home/somusan/miniconda3/envs/gaussian_splattingv1/share/pcl-1.14
- $ colcon build --packages-select pcl_conversions
- colcon build --packages-select pcl_ros
  • issue in running lidar_to_grid_node
$ ros2 run lidar_to_grid lidar_to_grid_node
/home/somusan/dev-somusan/trash/carla-e2e-av-stack/ros2_ws/install/lidar_to_grid/lib/lidar_to_grid/lidar_to_grid_node: error while loading shared libraries: libpcl_common.so.1.14: cannot open shared object file: No such file or directory
[ros2run]: Process exited with failure 127
somusan@somusan:~/.../carla-e2e-av-stack/ros2_ws
$ locate libpcl_common.so
/home/somusan/miniconda3/envs/gaussian_splattingv1/lib/libpcl_common.so
/home/somusan/miniconda3/envs/gaussian_splattingv1/lib/libpcl_common.so.1.14
/home/somusan/miniconda3/envs/gaussian_splattingv1/lib/libpcl_common.so.1.14.1
/home/somusan/miniconda3/pkgs/pcl-1.14.1-h679aaff_7/lib/libpcl_common.so
/home/somusan/miniconda3/pkgs/pcl-1.14.1-h679aaff_7/lib/libpcl_common.so.1.14
/home/somusan/miniconda3/pkgs/pcl-1.14.1-h679aaff_7/lib/libpcl_common.so.1.14.1
/snap/cloudcompare/208/usr/lib/x86_64-linux-gnu/libpcl_common.so.1.8
/snap/cloudcompare/208/usr/lib/x86_64-linux-gnu/libpcl_common.so.1.8.1
/usr/lib/x86_64-linux-gnu/libpcl_common.so.1.12
/usr/lib/x86_64-linux-gnu/libpcl_common.so.1.12.1
somusan@somusan:~/.../carla-e2e-av-stack/ros2_ws
$ export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:/home/somusan/miniconda3/envs/gaussian_splattingv1/lib/
somusan@somusan:~/.../carla-e2e-av-stack/ros2_ws
$ ros2 run lidar_to_grid lidar_to_grid_node
[INFO] [1743370182.039492340] [lidar_to_grid_node]: LidarToGridNode initialized
^C[INFO] [1743370196.641993804] [rclcpp]: signal_handler(signum=2)

PS: contributions are welcomes.
