README

TUP2023-Sentry-Nav

沈阳航空航天大学TUP战队2023年哨兵导航模块

作者: 顾昊

1. 简介

该模块为哨兵导航模块,负责进行3维点云至2.5D转换,激光里程计(LIO),重定位,路径规划,让哨兵在比赛场地内可以进行自身的定位与路径规划. 该分支为LIO分支.

2.项目结构

├── dll 重定位模块
├── FAST_LIO FAST-LIO激光里程计
├── grid_map grid_map库,用于生成2.5D高程地图
├── imu_tools IMU滤波库,用于提供位姿
├── LICENSE 协议
├── LIO-SAM LIO-SAM激光里程计
├── livox_ros_driver2 livox驱动
├── navigation2 nav2库,用于导航
├── octomap_mapping PCD转八叉树地图
├── pic 图像
└── README.md 文档

3.软件设计

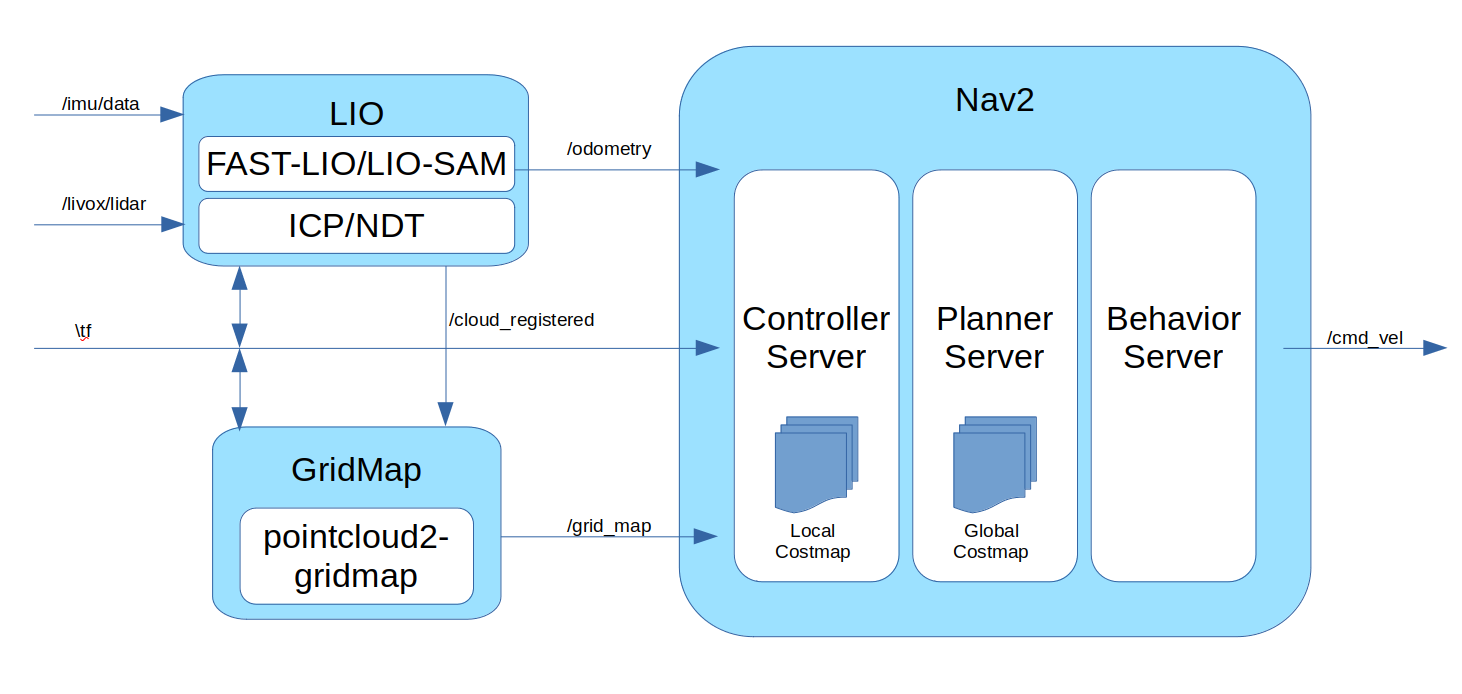

导航部分软件大致可分为四块:

  • Drivers: livox_ros_driver2, imu_tools,基本的设备驱动节点,图上未画出
  • LIO: FAST-LIO,LIO-SAM,dll,负责进行LIO和重定位以确定机器人位置
  • GridMap: grid_map,负责将点云转换为2.5D高程地图,供nav2导航使用
  • Nav2: nav2,本仓库的核心,负责进行最终的导航

3.1 激光里程计

激光里程计部分我们提供了FAST-LIO和LIO-SAM的实现,使用者可以自行选择,我们经过测试总结了两种算法的特点一些特点,总结在下面对比供对比参考: ||FAST-LIO|LIO-SAM| |—|—|—| |IMU|对陀螺仪数据质量要求相对较低|预积分基于gtsam库实现,对陀螺仪数据质量要求高,可能会出现IMU积分数值不稳定程序崩溃的危险| |回环检测|无|有,但退化场景下不推荐使用,存在飘飞可能| |算力需求|相对较低|相对较高|

总的来说,如果需要使用LIO-SAM,务必确保陀螺仪数据质量得到保证.

Mid360开机后振动大,对陀螺仪数据有较大影响(约为25hz正弦波,幅值±0.3m/s^2,可能是内部机械结构旋转所致).可适当进行数据处理或者使用外接陀螺仪以提高定位精度.
