control/vehicle_cmd_analyzer/README.md

Vehicle Command Analyzer description

Overview

This is a visualization tool for vehicle commands. You need plotjuggler to plot.

The following time series data will be plotted on the left side.

  • Velocity
  • Acceleration (acceleration and derivative of velocity)
  • Jerk (derivative of acceleration and second derivative of velocity)
  • Lateral acceleration

The following data will be plotted on the right side.

  • XY plot of jerk-acceleration

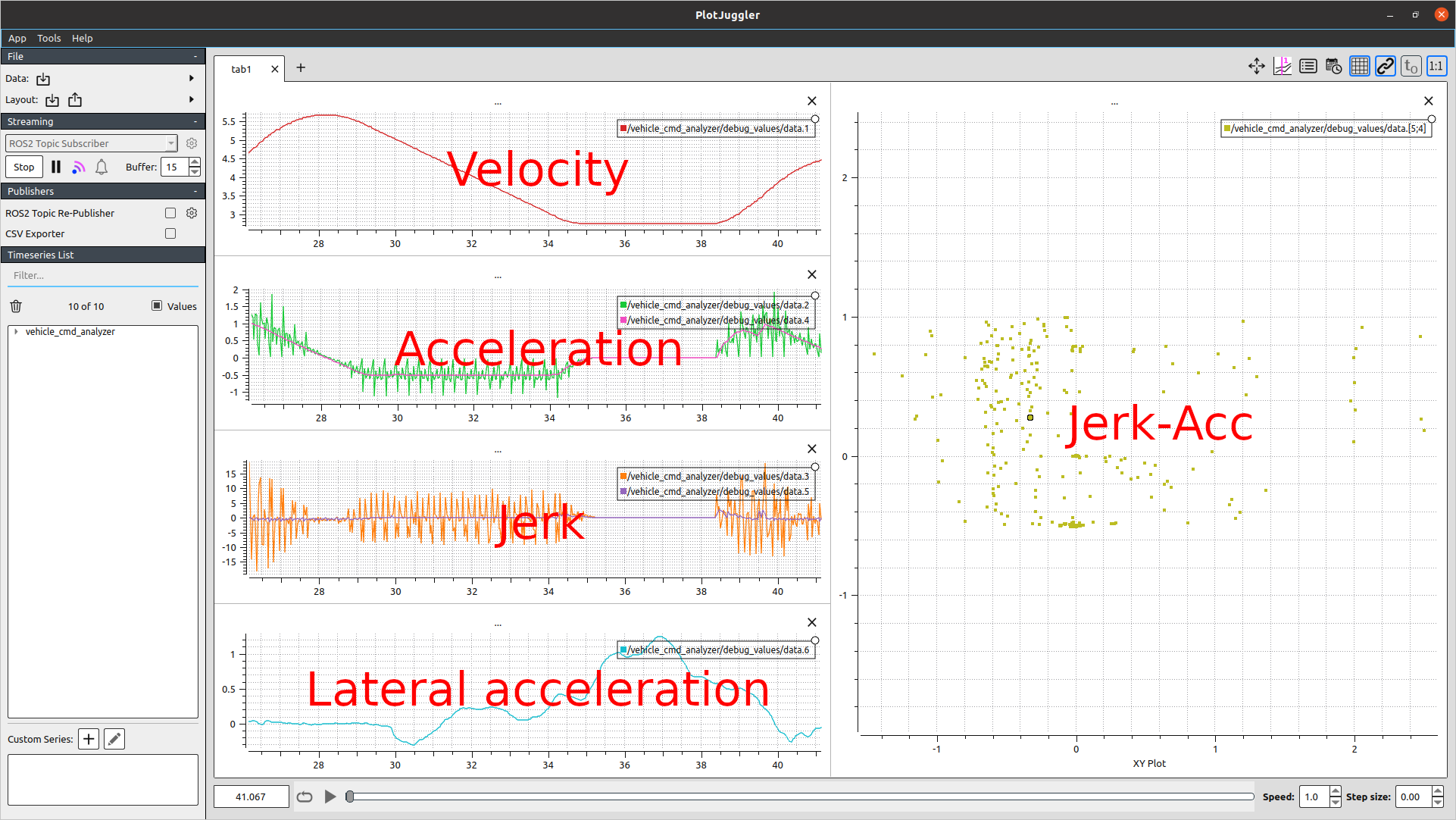

Plotted data

How to use

  1. Launch the node.
   ros2 launch vehicle_cmd_analyzer vehicle_cmd_analyzer.launch.xml vehicle_model:=lexus
  1. Launch plotjuggler.
   ros2 run plotjuggler plotjuggler
  1. Load layout.xml from File->Layout. Load layout.xml
  2. Press ok in the confirmation dialog.

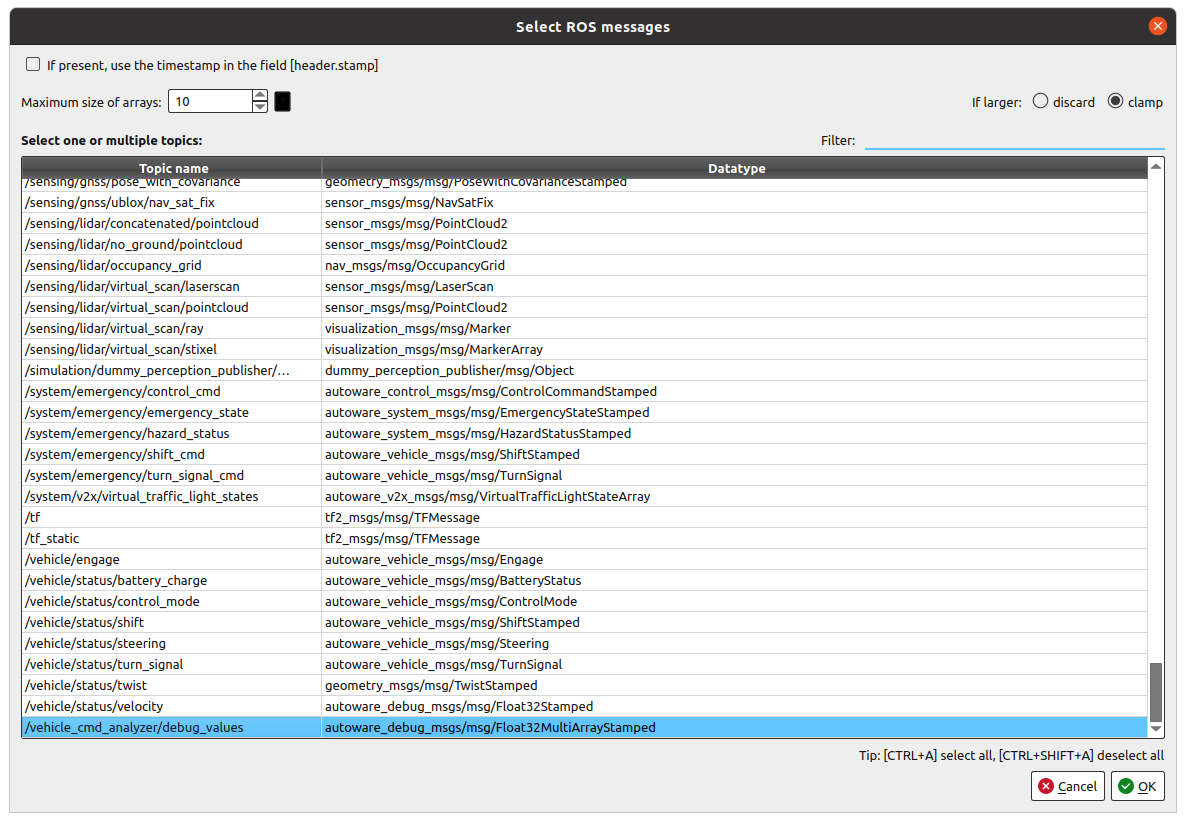

  3. Select/vehicle_cmd_analyzer/debug_values. Select topic
