tier4_automatic_goal_rviz_plugin

Purpose

1. Defining a GoalsList by adding goals using RvizTool (Pose on the map).

2. Automatic execution of the created GoalsList from the selected goal - it can be stopped and restarted.

3. Looping the current GoalsList.

4. Saving achieved goals to a file.

5. Plan the route to one (single) selected goal and starting that route - it can be stopped and restarted.

6. Remove any goal from the list or clear the current route.

7. Save the current GoalsList to a file and load the list from the file.

8. The application enables/disables access to options depending on the current state.

9. The saved GoalsList can be executed without using a plugin - using a node automatic_goal_sender.

Inputs / Outputs

Input

Output

HowToUse

1. Start rviz and select panels/Add new panel.

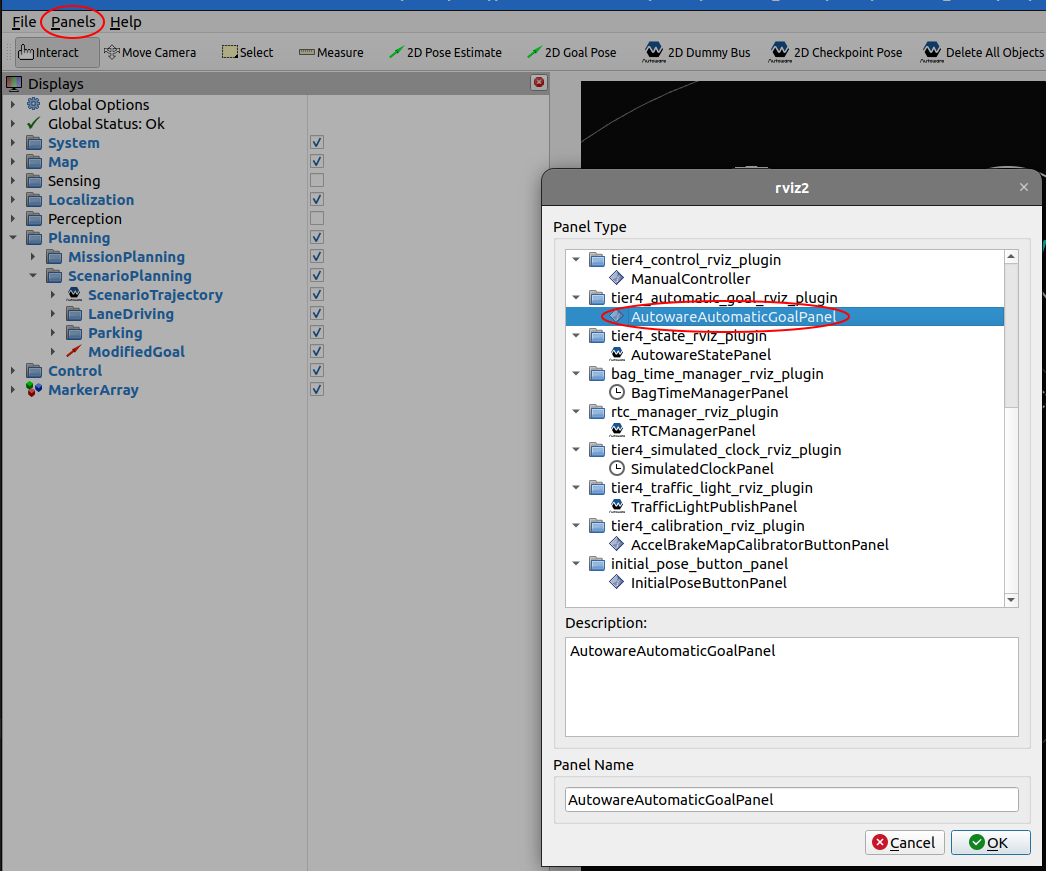

2. Select tier4_automatic_goal_rviz_plugin/AutowareAutomaticGoalPanel and press OK.

3. Select Add a new tool.



4. Select tier4_automatic_goal_rviz_plugin/AutowareAutomaticGoalTool and press OK.

5. Add goals visualization as markers to Displays.



6. Append goals to the GoalsList to be achieved using 2D Append Goal - in such a way that routes can be planned.

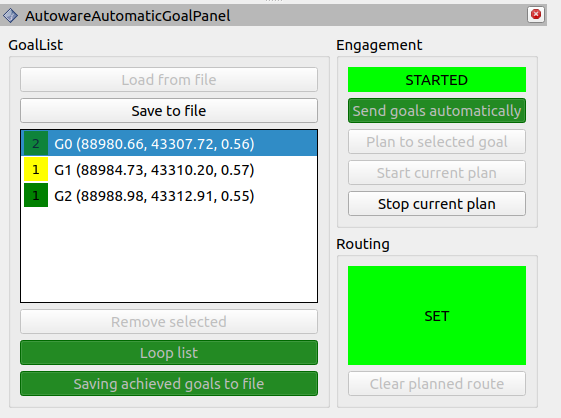

7. Start sequential planning and goal achievement by clicking Send goals automatically



8. You can save GoalsList by clicking Save to file.

9. After saving, you can run the GoalsList without using a plugin also:

   • example: ros2 launch tier4_automatic_goal_rviz_plugin automatic_goal_sender.launch.xml goals_list_file_path:="/tmp/goals_list.yaml" goals_achieved_dir_path:="/tmp/"
     • goals_list_file_path - is the path to the saved GoalsList file to be loaded
     • goals_achieved_dir_path - is the path to the directory where the file goals_achieved.log will be created and the achieved goals will be written to it

Hints

If the application (Engagement) goes into ERROR mode (usually returns to EDITING later), it means that one of the services returned a calling error (code!=0). In this situation, check the terminal output for more information.

• Often it is enough to try again.
• Sometimes a clearing of the current route is required before retrying.

Material Design Icons

This project uses Material Design Icons by Google. These icons are used under the terms of the Apache License, Version 2.0.

Material Design Icons are a collection of symbols provided by Google that are used to enhance the user interface of applications, websites, and other digital products.

License

The Material Design Icons are licensed under the Apache License, Version 2.0. You may obtain a copy of the License at:

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an “AS IS” BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Acknowledgments

We would like to express our gratitude to Google for making these icons available to the community, helping developers and designers enhance the visual appeal and user experience of their projects.
