adi_driver package from autoware_learn repo

amathutils_lib autoware_build_flags autoware_health_checker emergency_handler gnss lanelet2_extension libvectormap libwaypoint_follower map_file object_map op_planner op_ros_helpers op_simu op_utility ros_observer tvm_utility vector_map vector_map_server vehicle_sim_model autoware_connector ekf_localizer gnss_localizer image_processor imm_ukf_pda_track lidar_apollo_cnn_seg_detect lidar_euclidean_cluster_detect lidar_fake_perception lidar_kf_contour_track lidar_localizer lidar_naive_l_shape_detect lidar_point_pillars lidar_shape_estimation naive_motion_predict ndt_cpu ndt_gpu ndt_tku obj_db pcl_omp_registration pixel_cloud_fusion points_downsampler points_preprocessor pos_db range_vision_fusion road_occupancy_processor roi_object_filter trafficlight_recognizer twist_generator vel_pose_diff_checker vision_beyond_track vision_darknet_detect vision_lane_detect vision_segment_enet_detect vision_ssd_detect astar_search costmap_generator decision_maker dp_planner ff_waypoint_follower freespace_planner lane_planner lattice_planner ll2_global_planner mpc_follower op_global_planner op_local_planner op_simulation_package op_utilities pure_pursuit state_machine_lib twist_filter twist_gate way_planner waypoint_maker waypoint_planner autoware_quickstart_examples autoware_can_msgs autoware_config_msgs autoware_external_msgs autoware_lanelet2_msgs autoware_map_msgs autoware_msgs autoware_system_msgs tablet_socket_msgs vector_map_msgs carla_autoware_bridge gazebo_camera_description gazebo_imu_description lgsvl_simulator_bridge vehicle_gazebo_simulation_interface vehicle_gazebo_simulation_launcher wf_simulator autoware_bag_tools autoware_camera_lidar_calibrator autoware_launcher autoware_launcher_rviz calibration_publisher data_preprocessor graph_tools kitti_box_publisher kitti_launch kitti_player lanelet_aisan_converter log_tools map_tf_generator map_tools marker_downsampler mqtt_socket multi_lidar_calibrator oculus_socket pc2_downsampler rosbag_controller runtime_manager sound_player system_monitor tablet_socket twist2odom udon_socket vehicle_engage_panel vehicle_socket decision_maker_panel detected_objects_visualizer fastvirtualscan gazebo_world_description glviewer integrated_viewer points2image rosinterface autoware_rviz_plugins vehicle_description vehicle_model adi_driver as autoware_driveworks_gmsl_interface autoware_driveworks_interface vlg22c_cam custom_msgs garmin hokuyo javad_navsat_driver kvaser sick_lms5xx memsic_imu microstrain_driver nmea_navsat autoware_pointgrey_drivers sick_ldmrs_description sick_ldmrs_driver sick_ldmrs_laser sick_ldmrs_msgs sick_ldmrs_tools vectacam xsens_driver ymc ds4 ds4_driver ds4_msgs lanelet2 lanelet2_core lanelet2_examples lanelet2_io lanelet2_maps lanelet2_matching lanelet2_projection lanelet2_python lanelet2_routing lanelet2_traffic_rules lanelet2_validation mrt_cmake_modules

Package Summary

Tags No category tags.
Version 1.12.0
License BSD
Build type CATKIN
Use RECOMMENDED

Repository Summary

Description autoware src learn and recode.
Checkout URI https://github.com/is-whale/autoware_learn.git
VCS Type git
VCS Version 1.14
Last Updated 2025-03-14
Dev Status UNKNOWN
CI status No Continuous Integration
Released UNRELEASED
Tags No category tags.
Contributing Help Wanted (0)
Good First Issues (0)
Pull Requests to Review (0)

Package Description

The adi_driver package

Additional Links

Maintainers

  • Tokyo Opensource Robotics Kyokai (TORK) Developer Team

Authors

  • Ryosuke Tajima

Autoware’s adi_driver Subtree

This directory is part of a subtree fetched from https://github.com/CPFL/adi_driver on the Autoware branch, a fork from the original https://github.com/ros-drivers/velodyne

This repo adds specific functions for Autoware. If you need to modify any file inside this folder structure, please use the following commands to either push or fetch changes from the subtree. All the commands written here will suppose you’re in the root of Autoware path.

Pulling in commits from the repository subtree

Bring latest commits from https://github.com/CPFL/adi_driver

git subtree pull --prefix ros/src/sensing/drivers/imu/packages/analog_devices https://github.com/CPFL/adi_driver Autoware --squash

Pushing changes to the repository subtree

If you made any modification to the subtree you are encouraged to commit and publish your changes to the fork. You can do with the following command.

git subtree push --prefix ros/src/sensing/drivers/imu/packages/analog_devices https://github.com/CPFL/adi_driver Autoware

Original README below

adi_driver Build Status

This package contains ROS driver nodes for Analog Devices(ADI) sensor products mainly communicate by SPI(Serial Periferal Interface).

Currently supported devices are:

  • ADIS16470
    • Wide Dynamic Range Mini MEMS IMU
  • ADXL345:
    • 3-Axis, ±2 g/±4 g/±8 g/±16 g Digital Accelerometer
    • The support for this device is experimental

You need a SPI interface on your PC to communicate with device. This package supports Devantech’s USB-IIS as the USB-SPI converter.

USB-IIS

Overview

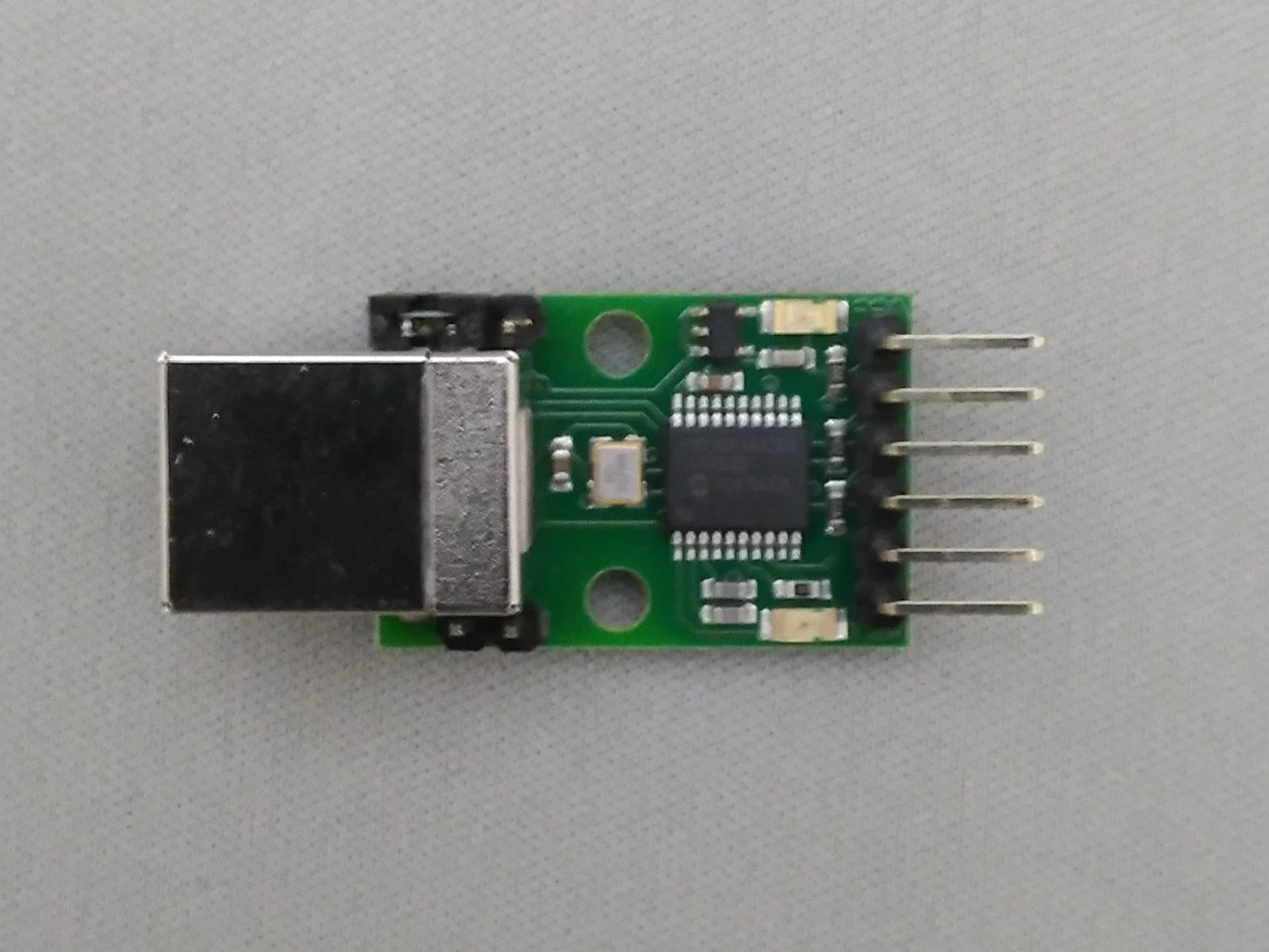

USB-IIS is a USB to Serial/I2C/SPI converter, simple, small and easy to use. You don’t need any extra library like libusb or libftdi. The device is available on /dev/ttyACM* as modem device.

Please consult the product information and SPI documentation for the detail.

Tips

You need to remove the jumper block on Power link pins to provide 3.3V for the device.

You need to add your user to dialout group to acces /dev/ttyACM* .

``` $ sudo adduser your_user_name dialout


If it takes several seconds until /dev/ttyACM* available, you need to
uninstall modemmanager as:


``` $ sudo apt remove modemmanager

ADIS16470

Overview

ADIS16470 is a complete inertial system that includes a triaxis gyroscope and a triaxis accelerometer.

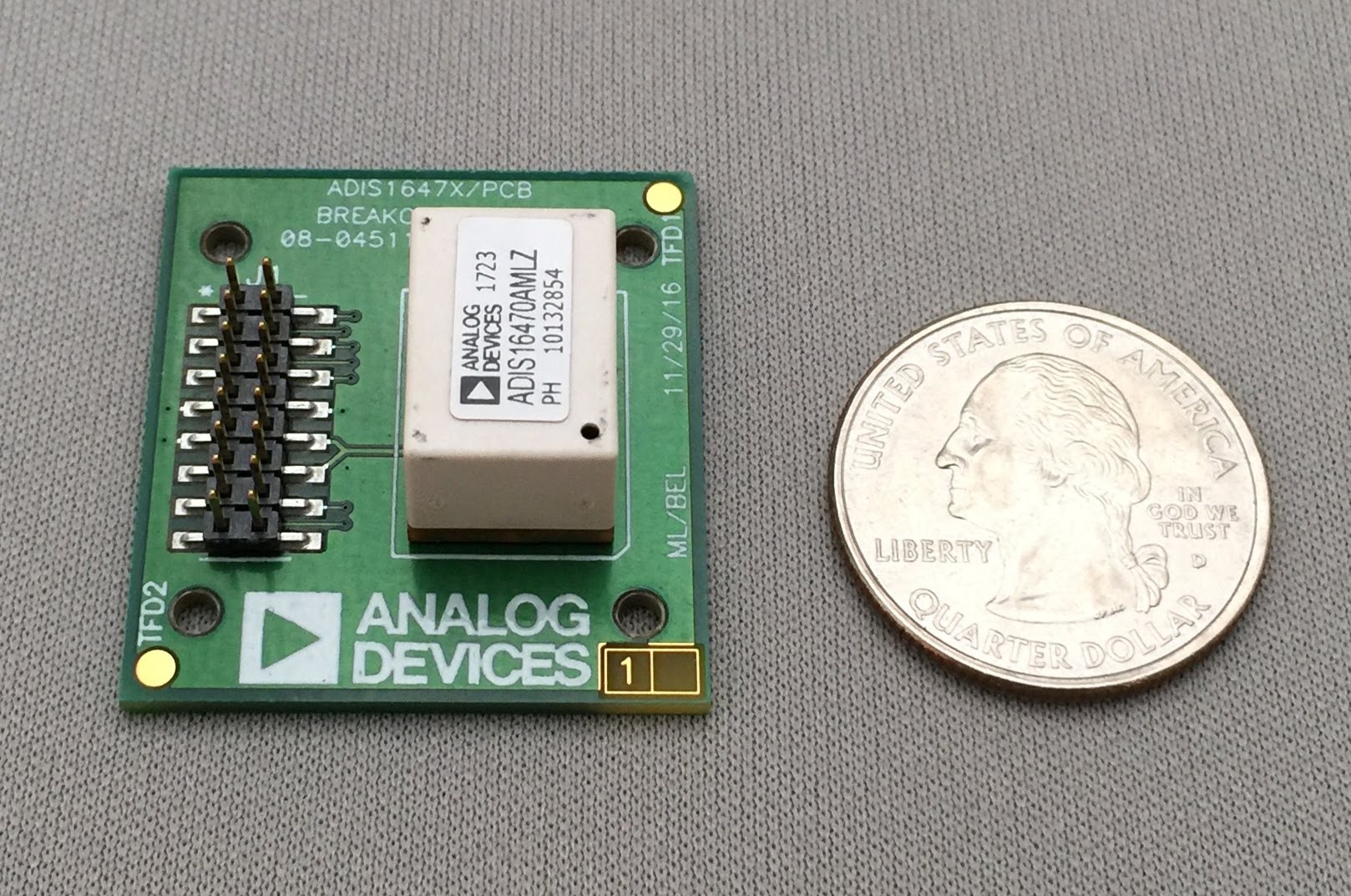

You can use Breakout board for easy use.

Connection

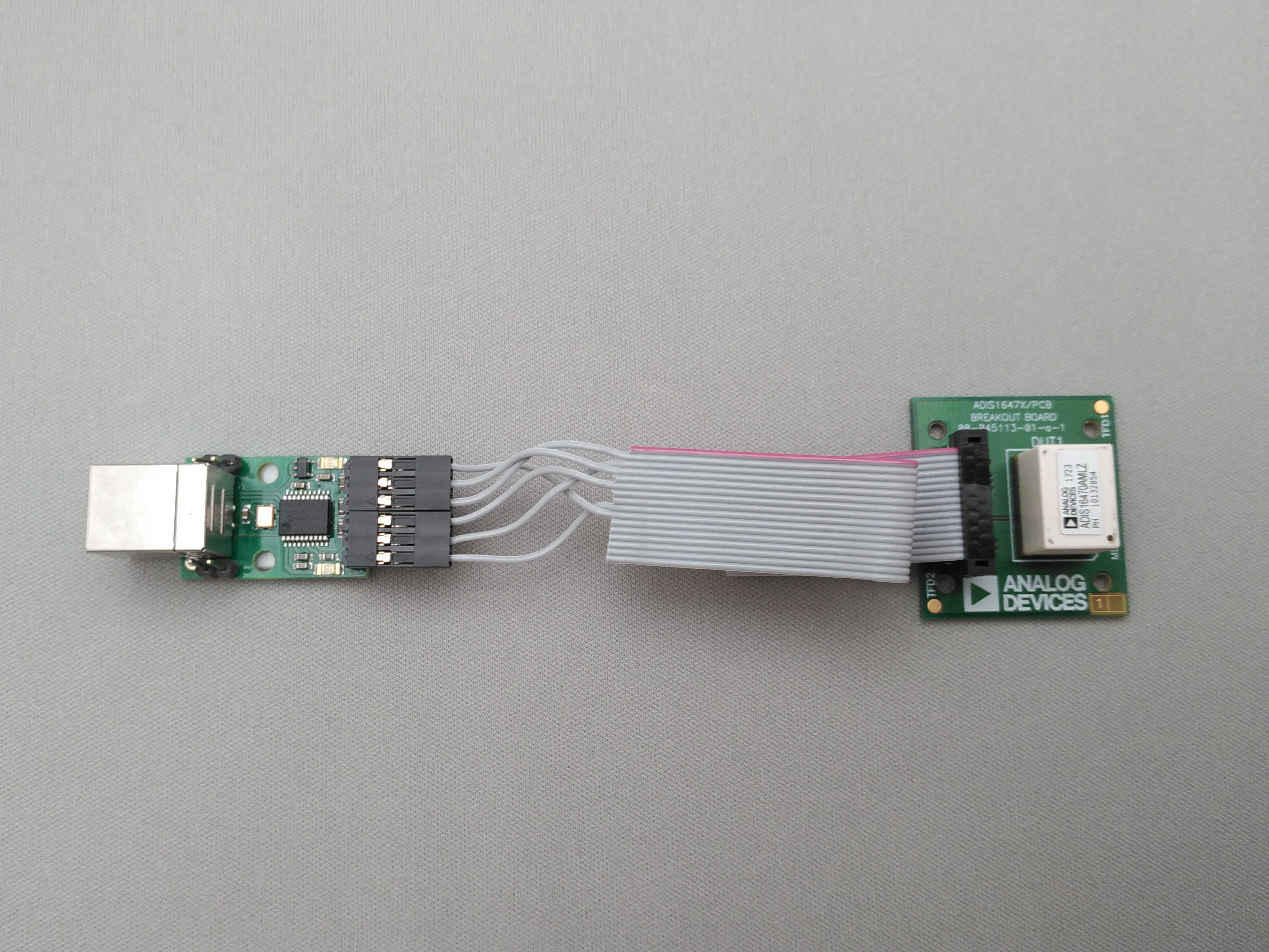

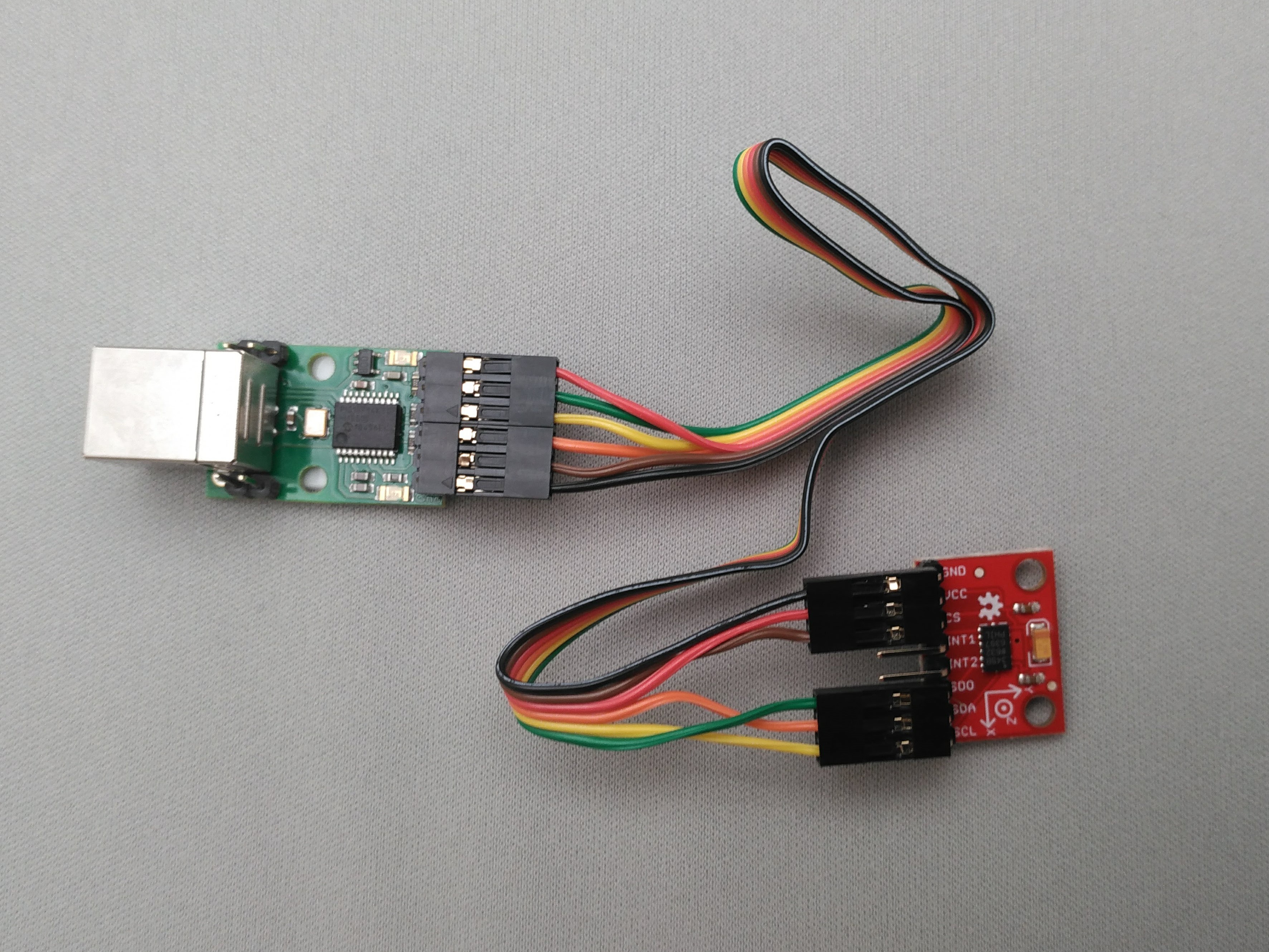

You need to build a flat cable to connect the USB-ISS and the ADIS16470 breakout board. The picture shows a implementation.

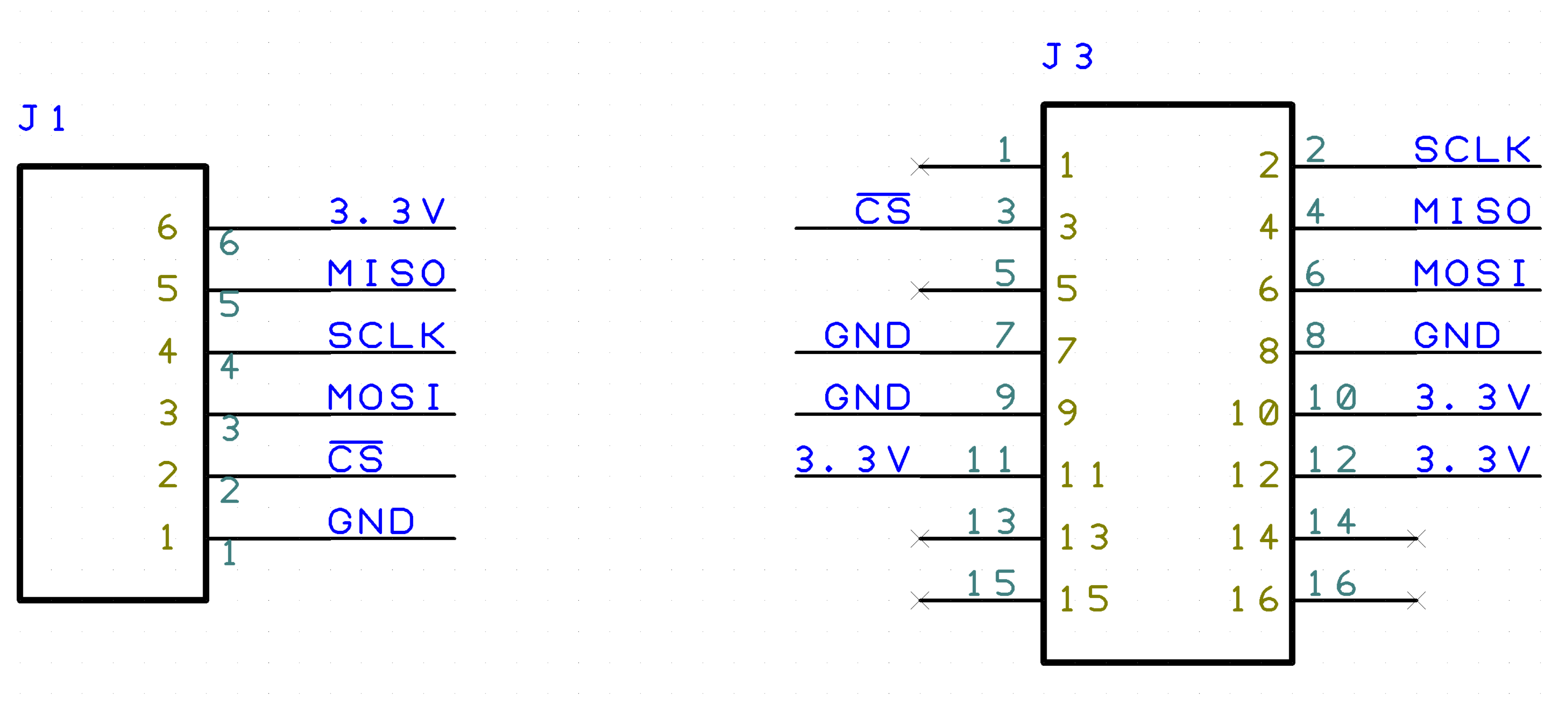

Very simple schematic is here. J1 is the USB-ISS pin and J2 is the 2mm pin headers on the ADIS16470 breakout board.

Note: you only need to connect one of the power-line(3.3V and GND). They are connected in the breakout board.

BOM

  • J1: 2550 Connector 6pin
  • J2: FCI Connector for 1.0mm pitch ribon cables
  • 1.0 mm pitch ribon cable

Quick start

Connect your sensor to USB port. Run the launch file as:

$ roslaunch adi_driver adis16470.launch

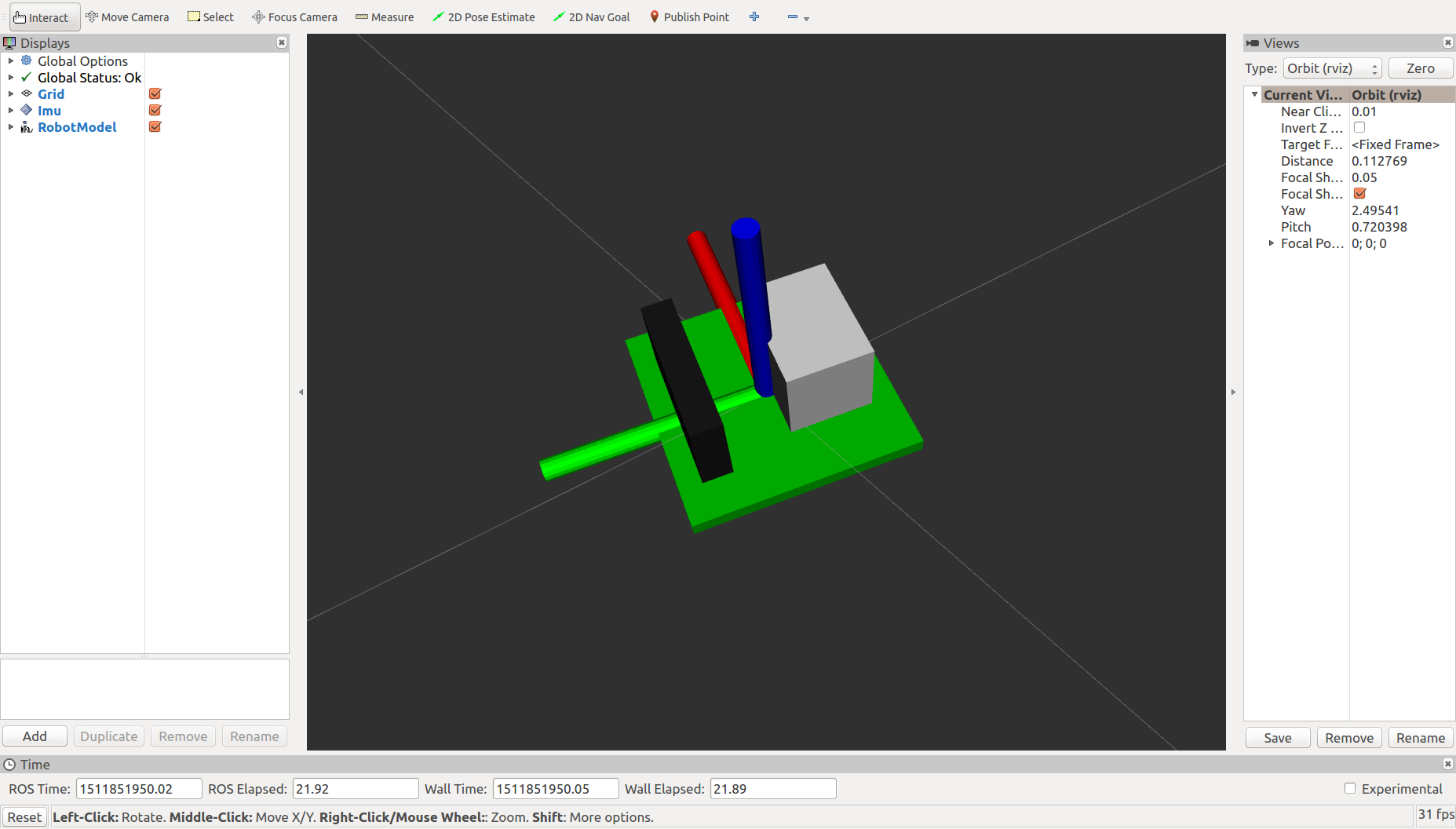

You can see the model of ADIS16470 breakout board in rviz panel.

ADXL345

Overview

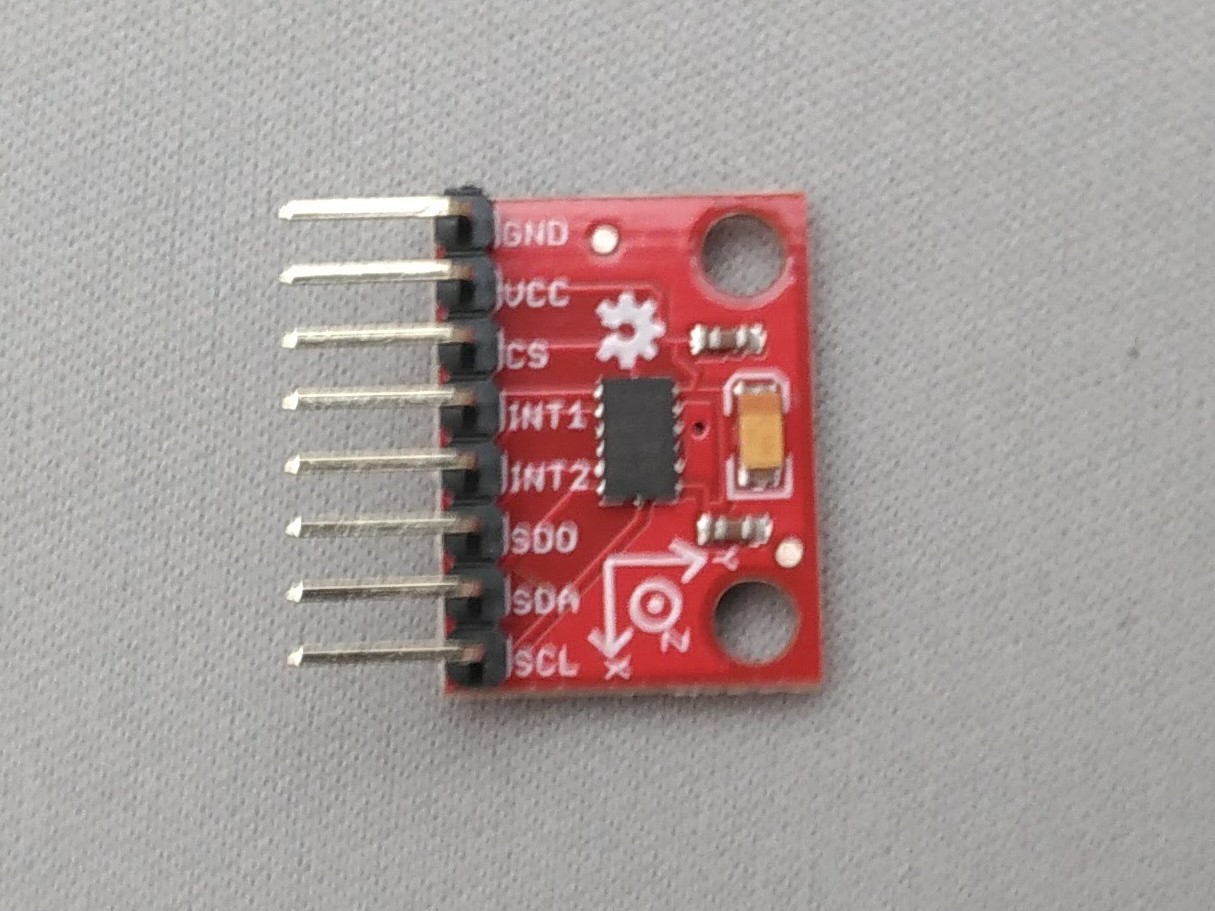

The ADXL345 is a small, thin, low power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16g. At this moment, support for this device is experimental.
