autoware_compare_map_segmentation

Purpose

The autoware_compare_map_segmentation is a package that filters the ground points from the input pointcloud by using map info (e.g. pcd, elevation map or split map pointcloud from map_loader interface).

Inner-workings / Algorithms

Compare Elevation Map Filter

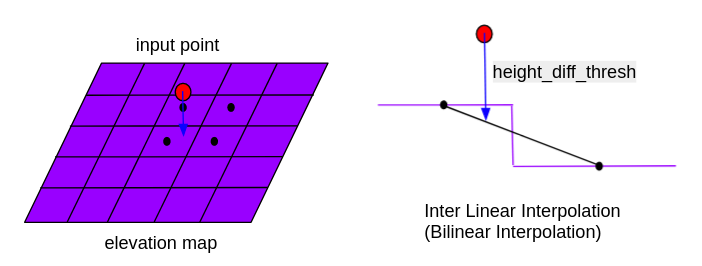

Compare the z of the input points with the value of elevation_map. The height difference is calculated by the binary integration of neighboring cells. Remove points whose height difference is below the height_diff_thresh.

Distance Based Compare Map Filter

This filter compares the input pointcloud with the map pointcloud using the nearestKSearch function of kdtree and removes points that are close to the map point cloud. The map pointcloud can be loaded statically at once at the beginning or dynamically as the vehicle moves.

Voxel Based Approximate Compare Map Filter

The filter loads the map point cloud, which can be loaded statically at the beginning or dynamically during vehicle movement, and creates a voxel grid of the map point cloud. The filter uses the getCentroidIndexAt function in combination with the getGridCoordinates function from the VoxelGrid class to find input points that are inside the voxel grid and removes them.

Voxel Based Compare Map Filter

The filter loads the map pointcloud (static loading whole map at once at beginning or dynamic loading during vehicle moving) and utilizes VoxelGrid to downsample map pointcloud.

For each point of input pointcloud, the filter use getCentroidIndexAt combine with getGridCoordinates function from VoxelGrid class to check if the downsampled map point existing surrounding input points. Remove the input point which has downsampled map point in voxels containing or being close to the point.

Voxel Distance based Compare Map Filter

This filter is a combination of the distance_based_compare_map_filter and voxel_based_approximate_compare_map_filter. The filter loads the map point cloud, which can be loaded statically at the beginning or dynamically during vehicle movement, and creates a voxel grid and a k-d tree of the map point cloud. The filter uses the getCentroidIndexAt function in combination with the getGridCoordinates function from the VoxelGrid class to find input points that are inside the voxel grid and removes them. For points that do not belong to any voxel grid, they are compared again with the map point cloud using the radiusSearch function of the k-d tree and are removed if they are close enough to the map.

Inputs / Outputs

Compare Elevation Map Filter

Input

Name Type Description
~/input/points sensor_msgs::msg::PointCloud2 reference points
~/input/elevation_map grid_map::msg::GridMap elevation map

Output

Name Type Description
~/output/points sensor_msgs::msg::PointCloud2 filtered points

Parameters

Name Type Description Default value
map_layer_name string elevation map layer name elevation
map_frame float frame_id of the map that is temporarily used before elevation_map is subscribed map
height_diff_thresh float Remove points whose height difference is below this value [m] 0.15

Other Filters

Input

Name Type Description
~/input/points sensor_msgs::msg::PointCloud2 reference points
~/input/map sensor_msgs::msg::PointCloud2 map (in case static map loading)
/localization/kinematic_state nav_msgs::msg::Odometry current ego-vehicle pose (in case dynamic map loading)

Output

Name Type Description
~/output/points sensor_msgs::msg::PointCloud2 filtered points

Parameters

Name Type Description Default value
use_dynamic_map_loading bool map loading mode selection, true for dynamic map loading, false for static map loading, recommended for no-split map pointcloud true
distance_threshold float Threshold distance to compare input points with map points [m] 0.5
map_update_distance_threshold float Threshold of vehicle movement distance when map update is necessary (in dynamic map loading) [m] 10.0
map_loader_radius float Radius of map need to be loaded (in dynamic map loading) [m] 150.0
timer_interval_ms int Timer interval to check if the map update is necessary (in dynamic map loading) [ms] 100
publish_debug_pcd bool Enable to publish voxelized updated map in debug/downsampled_map/pointcloud for debugging. It might cause additional computation cost false
downsize_ratio_z_axis double Positive ratio to reduce voxel_leaf_size and neighbor point distance threshold in z axis 0.5

Assumptions / Known limits

(Optional) Error detection and handling

(Optional) Performance characterization

(Optional) Future extensions / Unimplemented parts

CHANGELOG

Changelog for package autoware_compare_map_segmentation

0.43.0 (2025-03-21)

  • Merge remote-tracking branch 'origin/main' into chore/bump-version-0.43
  • chore: rename from [autoware.universe]{.title-ref} to [autoware_universe]{.title-ref} (#10306)
  • fix(compare_map_filter): deadlock bug fix (#10222)
    • fix(compare_map_filter): deadlock bug fix
    • fix: change to lock_guard
    • fix: CI error
    • reduce scope of mutex
    • refactor
    • chore: refactor

    * fix: add missing mutex for map_grid_size_x ---------

  • Contributors: Hayato Mizushima, Yutaka Kondo, badai nguyen

0.42.0 (2025-03-03)

  • Merge remote-tracking branch 'origin/main' into tmp/bot/bump_version_base
  • feat(autoware_utils): replace autoware_universe_utils with autoware_utils (#10191)
  • Contributors: Fumiya Watanabe, 心刚

0.41.2 (2025-02-19)

  • chore: bump version to 0.41.1 (#10088)
  • Contributors: Ryohsuke Mitsudome

0.41.1 (2025-02-10)

0.41.0 (2025-01-29)

  • Merge remote-tracking branch 'origin/main' into tmp/bot/bump_version_base
  • feat(autoware_compare_map_segmentation): tier4_debug_msgs changed to autoware_internal_debug_msgs in fil… (#9869) feat: tier4_debug_msgs changed to autoware_internal_debug_msgs in files perception/autoware_compare_map_segmentation Co-authored-by: Ryohsuke Mitsudome <<43976834+mitsudome-r@users.noreply.github.com>>
  • Contributors: Fumiya Watanabe, Vishal Chauhan

0.40.0 (2024-12-12)

  • Merge branch 'main' into release-0.40.0
  • Revert "chore(package.xml): bump version to 0.39.0 (#9587)" This reverts commit c9f0f2688c57b0f657f5c1f28f036a970682e7f5.
  • fix: fix ticket links in CHANGELOG.rst (#9588)
  • chore(package.xml): bump version to 0.39.0 (#9587)
    • chore(package.xml): bump version to 0.39.0
    • fix: fix ticket links in CHANGELOG.rst

    * fix: remove unnecessary diff ---------Co-authored-by: Yutaka Kondo <<yutaka.kondo@youtalk.jp>>

  • fix: fix ticket links in CHANGELOG.rst (#9588)
  • chore(compare_map_segmentation): rename defined type (#9181)
  • fix(cpplint): include what you use - perception (#9569)
  • 0.39.0
  • update changelog
  • Merge commit '6a1ddbd08bd' into release-0.39.0
  • fix: fix ticket links to point to https://github.com/autowarefoundation/autoware_universe (#9304)
  • chore(compare_map_segmentation): add maintainer (#9371)
  • fix(compare_map_segmentation): timer period mismatched with parameter (#9259)
  • fix: fix ticket links to point to https://github.com/autowarefoundation/autoware_universe (#9304)
  • chore(package.xml): bump version to 0.38.0 (#9266) (#9284)
    • unify package.xml version to 0.37.0
    • remove system_monitor/CHANGELOG.rst
    • add changelog

    * 0.38.0

  • fix(autoware_compare_map_segmentation): fix cppcheck constVariableReference (#9196)
  • Contributors: Esteve Fernandez, Fumiya Watanabe, M. Fatih Cırıt, Ryohsuke Mitsudome, Ryuta Kambe, Yutaka Kondo, badai nguyen

0.39.0 (2024-11-25)

0.38.0 (2024-11-08)

  • unify package.xml version to 0.37.0
  • refactor(autoware_point_types): prefix namespace with autoware::point_types (#9169)
  • refactor(autoware_compare_map_segmentation): resolve clang-tidy error in autoware_compare_map_segmentation (#9162)
    • refactor(autoware_compare_map_segmentation): resolve clang-tidy error in autoware_compare_map_segmentation
    • style(pre-commit): autofix
    • include message_filters as SYSTEM

    * style(pre-commit): autofix ---------Co-authored-by: pre-commit-ci[bot] <66853113+pre-commit-ci[bot]\@users.noreply.github.com>

  • fix(compare_map_segmentation): add missing mutex lock (#9097)
    • fix(compare_map_segmentation): missing mutux
    • chore: rename mutex_
    • fix: remove unnecessary mutex
    • fix: typos
    • chore: minimize mutex scope
    • chore: change to lock_guard
    • fix: check tree initialization
    • fix: memory ordering

    * fix: replace all static_map_loader_mutex_ ---------

  • fix(compare_map_segmentation): throw runtime error when using non-split map pointcloud for DynamicMapLoader (#9024)
    • fix(compare_map_segmentation): throw runtime error when using non-split map pointcloud for DynamicMapLoader
    • chore: typo
    • fix: launch

    * Update perception/autoware_compare_map_segmentation/schema/voxel_distance_based_compare_map_filter.schema.json Co-authored-by: Yoshi Ri <<yoshiyoshidetteiu@gmail.com>> * fix: change to RCLCPP_ERROR ---------Co-authored-by: Yoshi Ri <<yoshiyoshidetteiu@gmail.com>>

  • chore(compare_map_segmentation): add node tests (#8907)
    • chore(compare_map_segmentation): add test for voxel_based_compare_map_filter
    • feat: add test for other compare map filter

    * style(pre-commit): autofix ---------Co-authored-by: pre-commit-ci[bot] <66853113+pre-commit-ci[bot]\@users.noreply.github.com>

  • fix(autoware_compare_map_segmentation): typo bug fix (#8939) fix(compare_map_filter): typo bug fix
  • fix(autoware_compare_map_segmentation): fix unusedFunction (#8725) fix:unusedFunction
  • fix(compare_map_segmentation): use squared distance to compare threshold (#8744) fix: use square distance to compare threshold
  • fix(autoware_compare_map_segmentation): fix unusedFunction (#8565) fix:unusedFunction
  • fix(autoware_compare_map_segmentation): fix cppcheck warnings of functionStatic (#8263)
    • fix: deal with functionStatic warnings
    • fix: deal with functionStatic warnings
    • fix: remove unnecessary const

    * fix: build error ---------

  • fix(autoware_compare_map_segmentation): fix uninitMemberVar (#8338) fix:uninitMemberVar
  • fix(autoware_compare_map_segmentation): fix passedByValue (#8233) fix:passedByValue
  • fix(autoware_compare_map_segmentation): fix redundantInitialization warning (#8226)
  • revert: revert "refactor(autoware_map_msgs): modify pcd metadata msg (#7852)" (#8180)
  • refactor(autoware_map_msgs): modify pcd metadata msg (#7852)
  • refactor(compare_map_segmentation): add package name prefix of autoware_ (#8005)
    • refactor(compare_map_segmentation): add package name prefix of autoware_

    * docs: update Readme ---------

  • Contributors: Esteve Fernandez, Ryohsuke Mitsudome, Ryuta Kambe, Yamato Ando, Yoshi Ri, Yukinari Hisaki, Yutaka Kondo, badai nguyen, kobayu858, taisa1
