steer_offset_estimator

Purpose

The role of this node is to automatically calibrate steer_offset used in the vehicle_interface node.

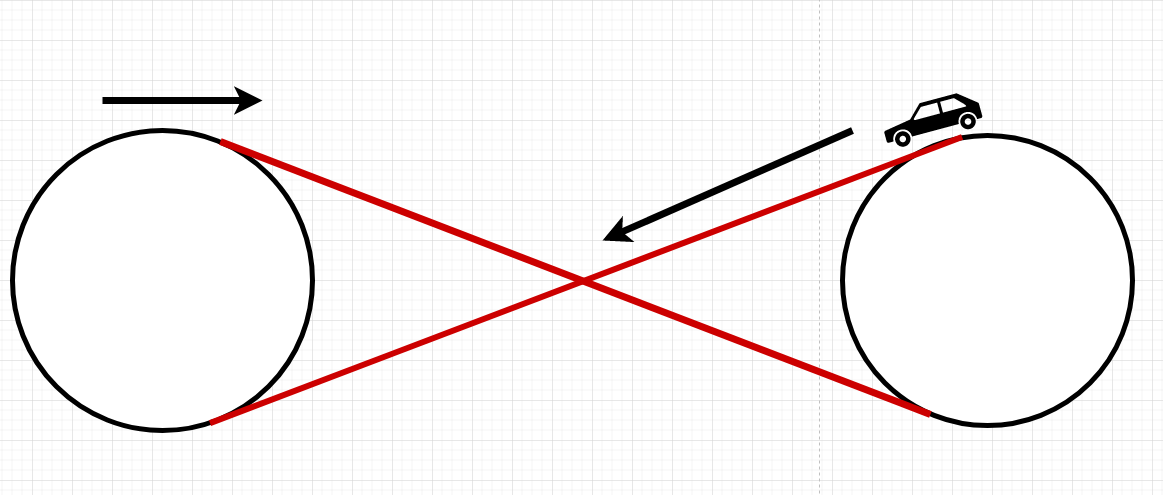

The base steer offset value is 0 by default, which is standard, is updated iteratively with the loaded driving data. This module is supposed to be used in below straight driving situation.

Inner-workings / Algorithms

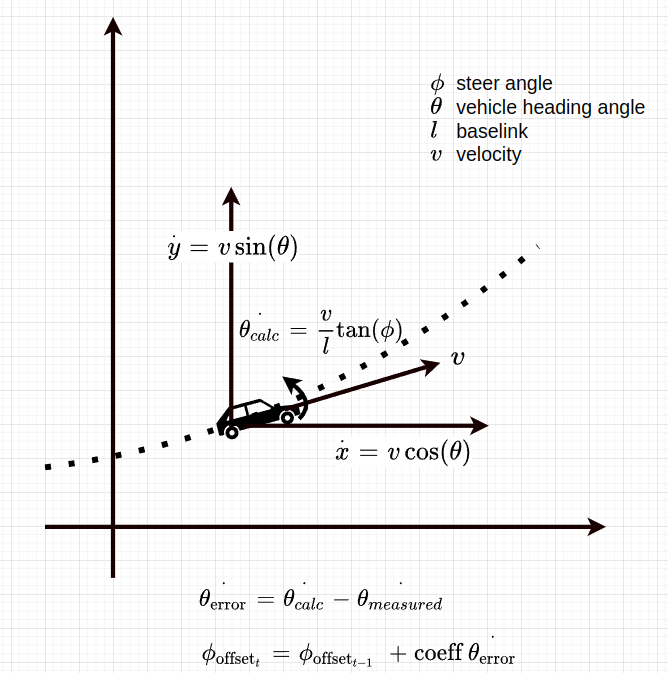

Estimates sequential steering offsets from kinematic model and state observations. Calculate yaw rate error and then calculate steering error recursively by least squared method, for more details see updateSteeringOffset() function.

Inputs / Outputs

Input

Output

Launch Calibrator

After launching Autoware, run the steer_offset_estimator by the following command and then perform autonomous driving. Note: You can collect data with manual driving if it is possible to use the same vehicle interface as during autonomous driving (e.g. using a joystick).

ros2 launch steer_offset_estimator steer_offset_estimator.launch.xml

Or if you want to use rosbag files, run the following commands.

ros2 param set /use_sim_time true
ros2 bag play <rosbag_file> --clock

Parameters

{{ json_to_markdown(“vehicle/steer_offset_estimator/schema/steer_offset_estimator.schema.json”) }}

Diagnostics

The steer_offset_estimator publishes diagnostics message depending on the calibration status. Diagnostic type WARN indicates that the current steer_offset is estimated to be inaccurate. In this situation, it is strongly recommended to perform a re-calibration of the steer_offset.

This diagnostics status can be also checked on the following ROS topic.

ros2 topic echo /vehicle/status/steering_offset
