traffic_light_classifier

Purpose

traffic_light_classifier is a package for classifying traffic light labels using cropped image around a traffic light. This package has two classifier models: cnn_classifier and hsv_classifier.

Inner-workings / Algorithms

cnn_classifier

Traffic light labels are classified by EfficientNet-b1 or MobileNet-v2.
Totally 83400 (58600 for training, 14800 for evaluation and 10000 for test) TIER IV internal images of Japanese traffic lights were used for fine-tuning.
The information of the models is listed here:

Name Input Size Test Accuracy
EfficientNet-b1 128 x 128 99.76%
MobileNet-v2 224 x 224 99.81%

hsv_classifier

Traffic light colors (green, yellow and red) are classified in HSV model.

About Label

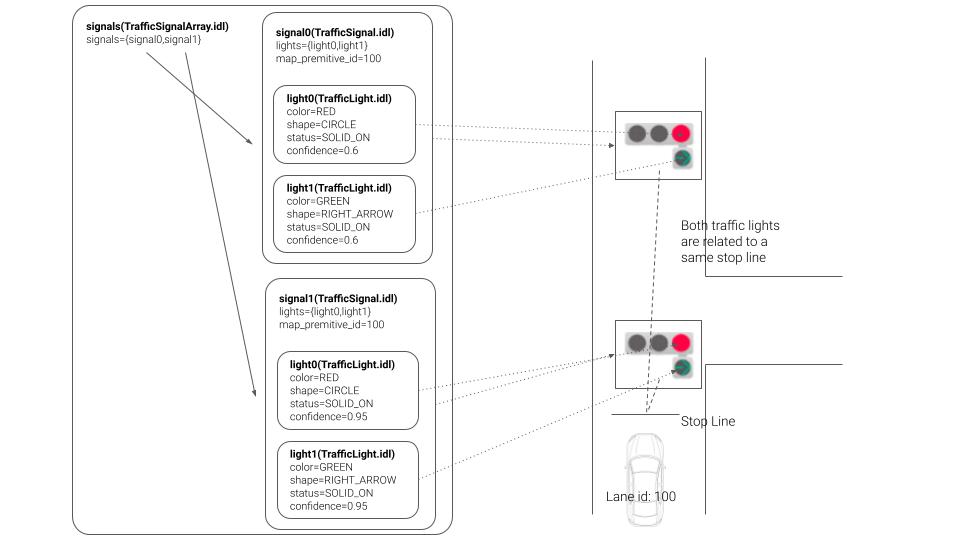

The message type is designed to comply with the unified road signs proposed at the Vienna Convention. This idea has been also proposed in Autoware.Auto.

There are rules for naming labels that nodes receive. One traffic light is represented by the following character string separated by commas. color1-shape1, color2-shape2 .

For example, the simple red and red cross traffic light label must be expressed as “red-circle, red-cross”.

These colors and shapes are assigned to the message as follows: TrafficLightDataStructure.jpg

Inputs / Outputs

Input

Name Type Description
~/input/image sensor_msgs::msg::Image input image
~/input/rois tier4_perception_msgs::msg::TrafficLightRoiArray rois of traffic lights

Output

Name Type Description
~/output/traffic_signals tier4_perception_msgs::msg::TrafficSignalArray classified signals
~/output/debug/image sensor_msgs::msg::Image image for debugging

Parameters

Node Parameters

Name Type Description
classifier_type int if the value is 1, cnn_classifier is used
data_path str packages data and artifacts directory path

Core Parameters

cnn_classifier

Name Type Description
classifier_label_path str path to the model file
classifier_model_path str path to the label file
classifier_precision str TensorRT precision, fp16 or int8
classifier_mean vector<double> 3-channel input image mean
classifier_std vector<double> 3-channel input image std
apply_softmax bool whether or not apply softmax

hsv_classifier

Name Type Description
green_min_h int the minimum hue of green color
green_min_s int the minimum saturation of green color
green_min_v int the minimum value (brightness) of green color
green_max_h int the maximum hue of green color
green_max_s int the maximum saturation of green color
green_max_v int the maximum value (brightness) of green color
yellow_min_h int the minimum hue of yellow color
yellow_min_s int the minimum saturation of yellow color
yellow_min_v int the minimum value (brightness) of yellow color
yellow_max_h int the maximum hue of yellow color
yellow_max_s int the maximum saturation of yellow color
yellow_max_v int the maximum value (brightness) of yellow color
red_min_h int the minimum hue of red color
red_min_s int the minimum saturation of red color
red_min_v int the minimum value (brightness) of red color
red_max_h int the maximum hue of red color
red_max_s int the maximum saturation of red color
red_max_v int the maximum value (brightness) of red color

Training Traffic Light Classifier Model

Overview

This guide provides detailed instructions on training a traffic light classifier model using the mmlab/mmpretrain repository and deploying it using mmlab/mmdeploy. If you wish to create a custom traffic light classifier model with your own dataset, please follow the steps outlined below.

Data Preparation

Use Sample Dataset

Autoware offers a sample dataset that illustrates the training procedures for traffic light classification. This dataset comprises 1045 images categorized into red, green, and yellow labels. To utilize this sample dataset, please download it from link and extract it to a designated folder of your choice.

Use Your Custom Dataset

To train a traffic light classifier, adopt a structured subfolder format where each subfolder represents a distinct class. Below is an illustrative dataset structure example;

DATASET_ROOT
    ├── TRAIN
        ├── RED
           ├── 001.png
           ├── 002.png
           └── ...

        ├── GREEN
            ├── 001.png
            ├── 002.png
            └──...

        ├── YELLOW
            ├── 001.png
            ├── 002.png
            └──...
        └── ...

    ├── VAL
           └──...


    └── TEST
           └── ...



Installation

Prerequisites

Step 1. Download and install Miniconda from the official website.

Step 2. Create a conda virtual environment and activate it

conda create --name tl-classifier python=3.8 -y
conda activate tl-classifier

Step 3. Install PyTorch

Please ensure you have PyTorch installed, compatible with CUDA 11.6, as it is a requirement for current Autoware

conda install pytorch==1.13.1 torchvision==0.14.1 pytorch-cuda=11.6 -c pytorch -c nvidia

Install mmlab/mmpretrain

Step 1. Install mmpretrain from source

cd ~/
git clone https://github.com/open-mmlab/mmpretrain.git
cd mmpretrain
pip install -U openmim && mim install -e .

Training

MMPretrain offers a training script that is controlled through a configuration file. Leveraging an inheritance design pattern, you can effortlessly tailor the training script using Python files as configuration files.

In the example, we demonstrate the training steps on the MobileNetV2 model, but you have the flexibility to employ alternative classification models such as EfficientNetV2, EfficientNetV3, ResNet, and more.

Create a config file

Generate a configuration file for your preferred model within the configs folder

touch ~/mmpretrain/configs/mobilenet_v2/mobilenet-v2_8xb32_custom.py

Open the configuration file in your preferred text editor and make a copy of the provided content. Adjust the data_root variable to match the path of your dataset. You are welcome to customize the configuration parameters for the model, dataset, and scheduler to suit your preferences

# Inherit model, schedule and default_runtime from base model
_base_ = [
    '../_base_/models/mobilenet_v2_1x.py',
    '../_base_/schedules/imagenet_bs256_epochstep.py',
    '../_base_/default_runtime.py'
]

# Set the number of classes to the model
# You can also change other model parameters here
# For detailed descriptions of model parameters, please refer to link below
# (Customize model)[https://mmpretrain.readthedocs.io/en/latest/advanced_guides/modules.html]
model = dict(head=dict(num_classes=3, topk=(1, 3)))

# Set max epochs and validation interval
train_cfg = dict(by_epoch=True, max_epochs=50, val_interval=5)

# Set optimizer and lr scheduler
optim_wrapper = dict(
    optimizer=dict(type='SGD', lr=0.001, momentum=0.9))
param_scheduler = dict(type='StepLR', by_epoch=True, step_size=1, gamma=0.98)

dataset_type = 'CustomDataset'
data_root = "/PATH/OF/YOUR/DATASET"

# Customize data preprocessing and dataloader pipeline for training set
# These parameters calculated for the sample dataset
data_preprocessor = dict(
    mean=[0.2888 * 256, 0.2570 * 256, 0.2329 * 256],
    std=[0.2106 * 256, 0.2037 * 256, 0.1864 * 256],
    num_classes=3,
    to_rgb=True,
)

# Customize data preprocessing and dataloader pipeline for train set
# For detailed descriptions of data pipeline, please refer to link below
# (Customize data pipeline)[https://mmpretrain.readthedocs.io/en/latest/advanced_guides/pipeline.html]
train_pipeline = [
    dict(type='LoadImageFromFile'),
    dict(type='Resize', scale=224),
    dict(type='RandomFlip', prob=0.5, direction='horizontal'),
    dict(type='PackInputs'),
]
train_dataloader = dict(
    dataset=dict(
        type=dataset_type,
        data_root=data_root,
        ann_file='',
        data_prefix='train',
        with_label=True,
        pipeline=train_pipeline,
    ),
    num_workers=8,
    batch_size=32,
    sampler=dict(type='DefaultSampler', shuffle=True)
)

# Customize data preprocessing and dataloader pipeline for test set
test_pipeline = [
    dict(type='LoadImageFromFile'),
    dict(type='Resize', scale=224),
    dict(type='PackInputs'),
]

# Customize data preprocessing and dataloader pipeline for validation set
val_cfg = dict()
val_dataloader = dict(
    dataset=dict(
        type=dataset_type,
        data_root=data_root,
        ann_file='',
        data_prefix='val',
        with_label=True,
        pipeline=test_pipeline,
    ),
    num_workers=8,
    batch_size=32,
    sampler=dict(type='DefaultSampler', shuffle=True)
)

val_evaluator = dict(topk=(1, 3,), type='Accuracy')

test_dataloader = val_dataloader
test_evaluator = val_evaluator


Start training

cd ~/mmpretrain
python tools/train.py configs/mobilenet_v2/mobilenet-v2_8xb32_custom.py

Training logs and weights will be saved in the work_dirs/mobilenet-v2_8xb32_custom folder.

Convert PyTorch model to ONNX model

Install mmdeploy

The ‘mmdeploy’ toolset is designed for deploying your trained model onto various target devices. With its capabilities, you can seamlessly convert PyTorch models into the ONNX format.

# Activate your conda environment
conda activate tl-classifier

# Install mmenigne and mmcv
mim install mmengine
mim install "mmcv>=2.0.0rc2"

# Install mmdeploy
pip install mmdeploy==1.2.0

# Support onnxruntime
pip install mmdeploy-runtime==1.2.0
pip install mmdeploy-runtime-gpu==1.2.0
pip install onnxruntime-gpu==1.8.1

#Clone mmdeploy repository
cd ~/
git clone -b main https://github.com/open-mmlab/mmdeploy.git

Convert PyTorch model to ONNX model

cd ~/mmdeploy

# Run deploy.py script
# deploy.py script takes 5 main arguments with these order; config file path, train config file path,
# checkpoint file path, demo image path, and work directory path
python tools/deploy.py \
~/mmdeploy/configs/mmpretrain/classification_onnxruntime_static.py\
~/mmpretrain/configs/mobilenet_v2/train_mobilenet_v2.py \
~/mmpretrain/work_dirs/train_mobilenet_v2/epoch_300.pth \
/SAMPLE/IAMGE/DIRECTORY \
--work-dir mmdeploy_model/mobilenet_v2

Converted ONNX model will be saved in the mmdeploy/mmdeploy_model/mobilenet_v2 folder.

After obtaining your onnx model, update parameters defined in the launch file (e.g. model_file_path, label_file_path, input_h, input_w…). Note that, we only support labels defined in tier4_perception_msgs::msg::TrafficLightElement.

Assumptions / Known limits

(Optional) Error detection and handling

(Optional) Performance characterization

[1] M. Sandler, A. Howard, M. Zhu, A. Zhmoginov and L. Chen, “MobileNetV2: Inverted Residuals and Linear Bottlenecks,” 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition, Salt Lake City, UT, 2018, pp. 4510-4520, doi: 10.1109/CVPR.2018.00474.

[2] Tan, Mingxing, and Quoc Le. “EfficientNet: Rethinking model scaling for convolutional neural networks.” International conference on machine learning. PMLR, 2019.

(Optional) Future extensions / Unimplemented parts

CHANGELOG
No CHANGELOG found.

Wiki Tutorials

This package does not provide any links to tutorials in it's rosindex metadata. You can check on the ROS Wiki Tutorials page for the package.

Launch files

  • launch/traffic_light_classifier.launch.xml
      • input/image [default: ~/image_raw]
      • input/rois [default: ~/rois]
      • output/traffic_signals [default: classified/traffic_signals]
      • data_path [default: $(env HOME)/autoware_data]
      • classifier_label_path [default: $(var data_path)/traffic_light_classifier/lamp_labels.txt]
      • classifier_model_path [default: $(var data_path)/traffic_light_classifier/traffic_light_classifier_mobilenetv2_batch_6.onnx]
      • classifier_precision [default: fp16]
      • use_gpu [default: true]
      • classifier_type [default: 1]
      • classifier_type [default: 0]
      • build_only [default: false]
